PHBC24N Series

Manufacturer: KEMET

Catalog

TOROIDAL INDUCTOR, PHBC SERIES, 104 µH, 20 A, 0.0104 OHM, ± 20%

Part	Height (Max)	Height (Max) [Max] [z]	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Inductance @ Frequency	Number of Lines	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Type	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height (Max) [z]	Height (Max) [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]

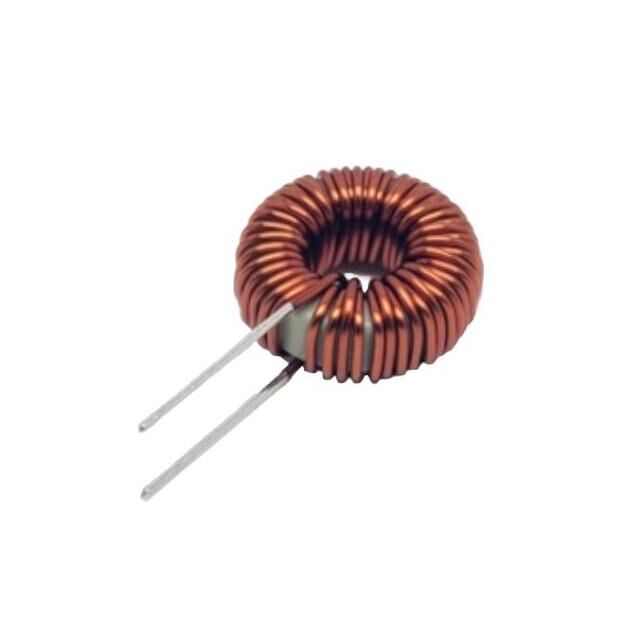

KEMET PHBC24N-2R3A0104V	49.5 mm	1.949 in	10.4 mOhm	20 A	100 kHz 104 µH	2	49.5 mm	1.949 in	10.4 mOhm	125 °C	-40 C	20 A	Through Hole	No Base Vertical	2 Lead	1.949 in	49.5 mm
KEMET PHBC24N-2R0A0219V			19.5 mOhm	15 A	219 µH	2	50.5 mm	1.988 in	19.5 mOhm	125 °C	-40 C	15 A	Through Hole	No Base Vertical	2 Lead		50.5 mm	50.5 mm	1.988 in	1.988 in

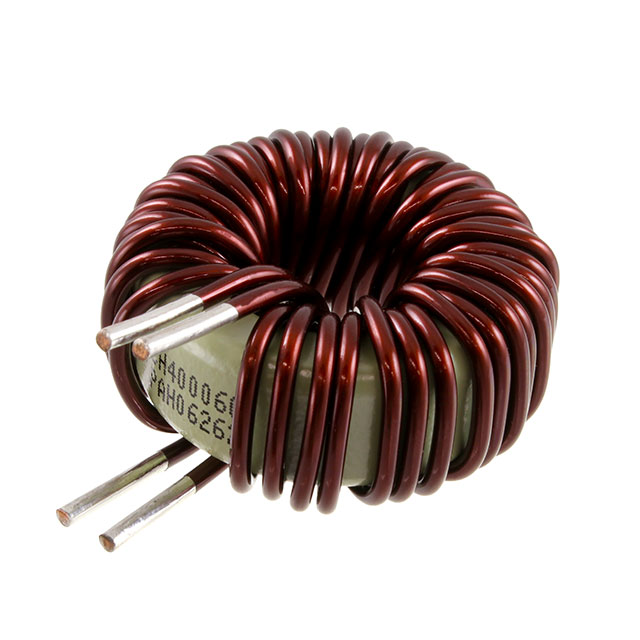

KEMET PHBC24N-2R1B0039V		1.972 in	6.8 mOhm	30 A	39 µH	2	50.1 mm	1.972 "	6.8 mOhm	125 °C	-40 C	30 A	Through Hole	No Base Vertical	2 Lead		1.972 in	50.1 mm			50.1 mm
