76SB Series

Catalog

SWITCH ROCKER DIP SPST 0.15A 30V

Part	Length	Length	Electrical Life	Body Material	Mechanical Life	Number of Positions	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish	Mounting Type	Features	Actuator Type	Height Above Board [z]	Height Above Board [z]	Circuit	Actuator Level	Termination Style	Voltage Rating	Length [x]	Length [x]

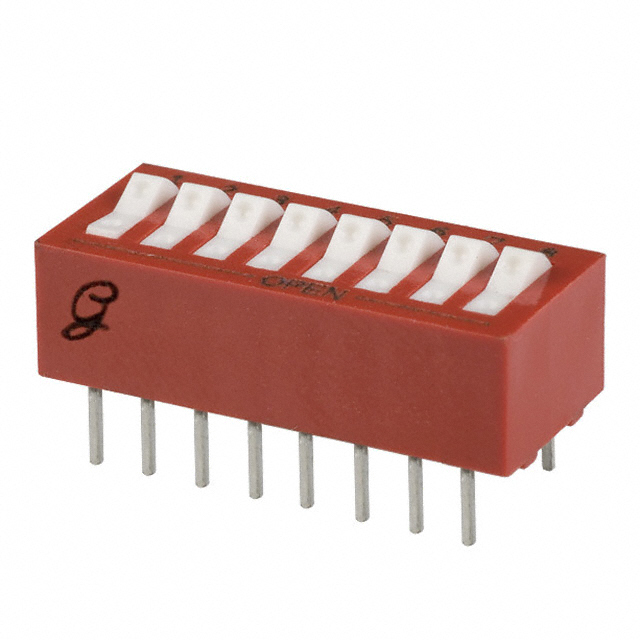

Grayhill Inc. 76SB08ST	0.88 in	22.35 mm	2000 Steps	Thermoplastic	2000 Cycles	8	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole	Tape Seal	Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC

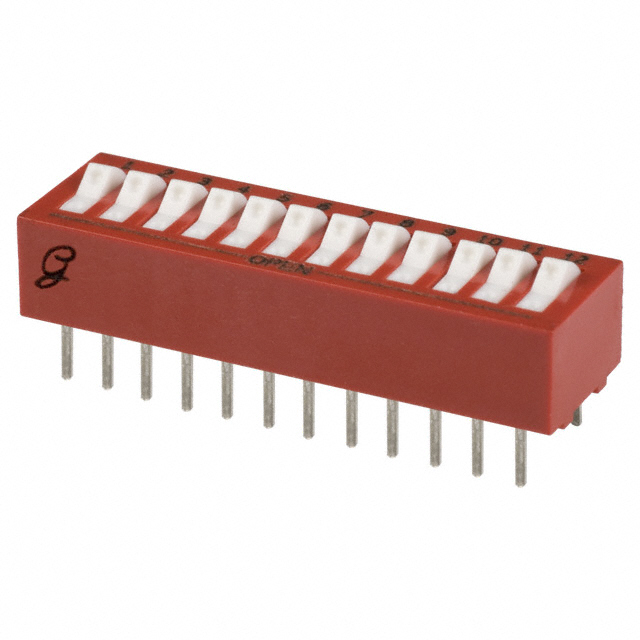

Grayhill Inc. 76SB12ST		32.51 mm	2000 Steps	Thermoplastic	2000 Cycles	12	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole	Tape Seal	Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC	1.28 in
Grayhill Inc. 76SB12T		32.51 mm	2000 Steps	Thermoplastic	2000 Cycles	12	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole		Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC	1.28 in

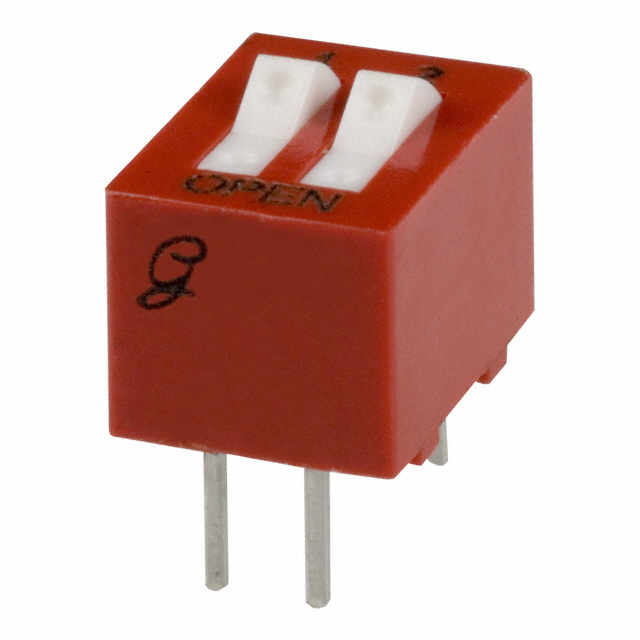

Grayhill Inc. 76SB02ST	0.28 in	7.11 mm	2000 Steps	Thermoplastic	2000 Cycles	2	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole	Tape Seal	Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC
Grayhill Inc. 76SB02T	0.28 in	7.11 mm	2000 Steps	Thermoplastic	2000 Cycles	2	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole		Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC

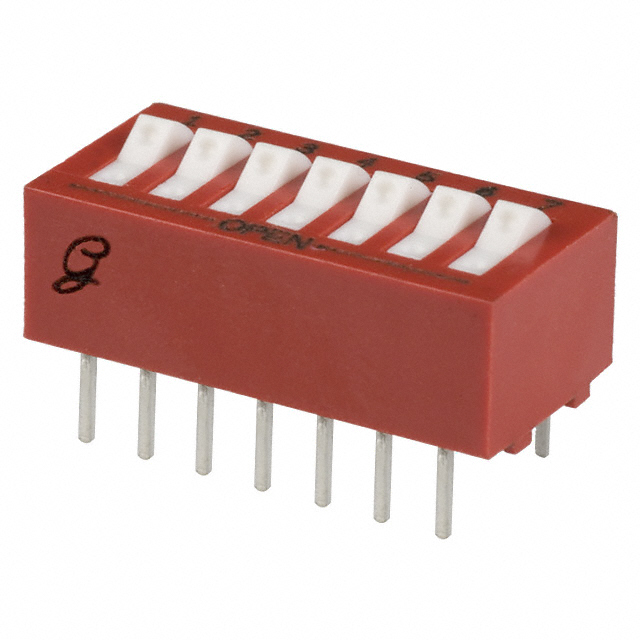

Grayhill Inc. 76SB07ST			2000 Steps	Thermoplastic	2000 Cycles	7	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole	Tape Seal	Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC
Grayhill Inc. 76SB05ST			2000 Steps	Thermoplastic	2000 Cycles	5	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole	Tape Seal	Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC	0.58 in	14.73 mm
Grayhill Inc. 76SB05T			2000 Steps	Thermoplastic	2000 Cycles	5	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole		Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC	0.58 in	14.73 mm

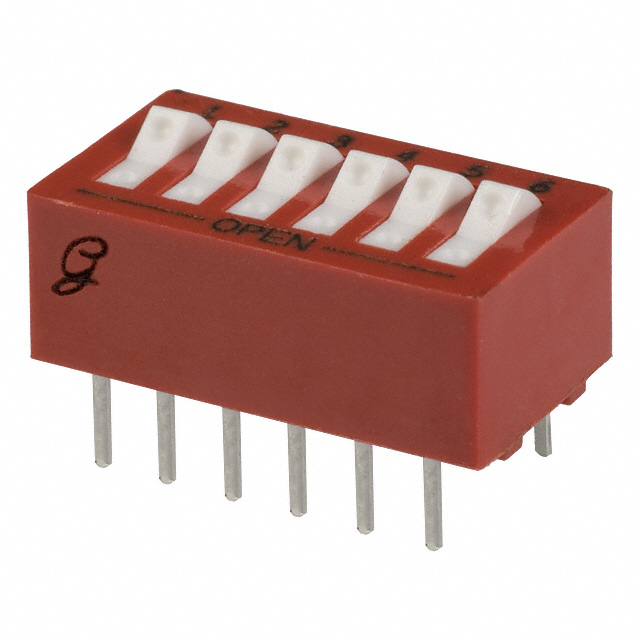

Grayhill Inc. 76SB06T			2000 Steps	Thermoplastic	2000 Cycles	6	2.54 mm	0.1 "	85 °C	-40 C	Copper Alloy	Gold	Through Hole		Rocker	0.315 in	8 mm	SPST	Raised	PC Pin	30 VDC	0.68 in	17.27 mm
