TPS562206 Series

Catalog

4.2-V TO 17-V INPUT, 2-A SYNCHRONOUS BUCK CONVERTER IN SOT563 WITH FCCM MODE

Part	Mounting Type	Voltage - Input (Min) [Min]	Topology	Output Configuration	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Frequency - Switching	Output Type	Function	Voltage - Output (Min/Fixed)	Number of Outputs	Voltage - Output (Max) [Max]	Supplier Device Package	Synchronous Rectifier	Supplied Contents	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part	Regulator Topology	Contents	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output
Texas Instruments TPS562206DRLR	Surface Mount	4.2 V	Buck	Positive	SOT-563 SOT-666	17 V	-40 C	125 °C	2 A	600 kHz	Adjustable	Step-Down	0.6 V	1	7 V	SOT-563

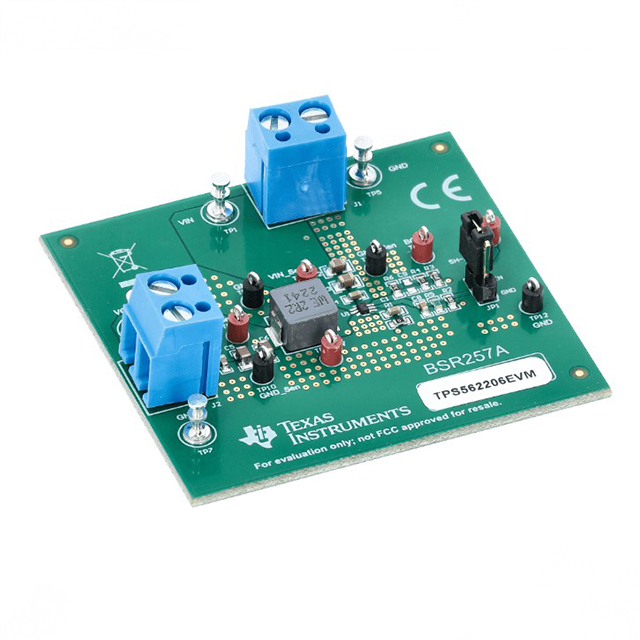

Texas Instruments TPS562206EVM									2 A	600 kHz								Board(s)	1	1 Non-Isolated Output Non-Isolated	Fully Populated	TPS562206	Buck	Board(s)	DC/DC Step Down	17 V	4.2 V	1.05 V
