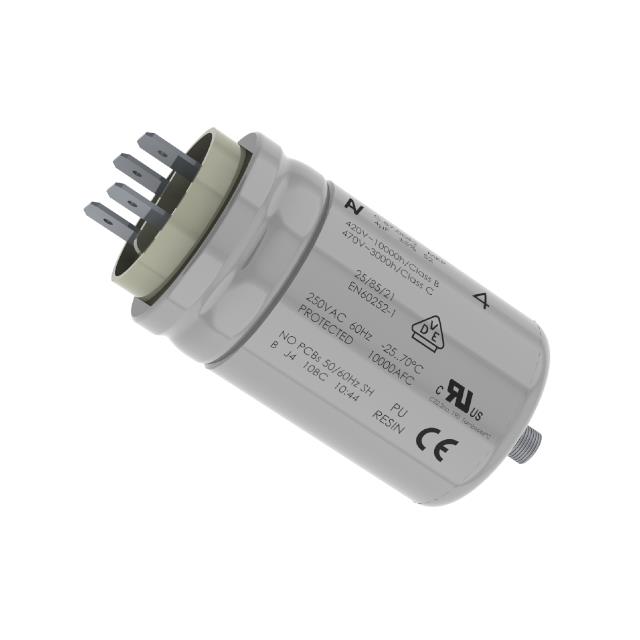

C87 Series

Manufacturer: KEMET

Catalog

MOTOR START CAPACITORS & MOTOR RUN CAPACITORS 470 VAC 40UF 5%

Part	Termination	Termination	Termination	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Dielectric Material	Tolerance	Voltage Rating - AC	Mounting Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension
KEMET C870CF45400SG0J	Quick Connect	2.8 mm	0.11 "	40 µF	85 °C	-25 °C	Motor Run	Polypropylene (PP) Metallized	5 %	470 V	Chassis Stud Mount	Can Radial
KEMET C870CF35200AA1J					85 °C	-25 °C	Motor Run	Polypropylene (PP) Metallized	5 %	470 V	Chassis Stud Mount	Can Radial	3.937 in	100 mm	0.528 in	13.4 mm	1.378 "	35 mm
KEMET C870CF35100AA0J	Disconnect Quick Connect			10 µF	85 °C	-25 °C	Motor Run	Polypropylene (PP) Metallized	5 %	470 V	Chassis Stud Mount	Can Radial			0.528 in	13.4 mm	1.181 "		3.15 "	80 mm	30 mm
KEMET C870CF25250AA1J				25 µF	85 °C	-25 °C	Motor Run	Polypropylene (PP) Metallized	5 %	470 V	Chassis Stud Mount	Can Radial	3.937 in	100 mm	0.394 in	10 mm	1.575 in	40 mm
KEMET C878AG35550AA0J				55 µF	85 °C	-25 °C	Motor Run	Polypropylene (PP) Metallized	5 %	470 V	Chassis Stud Mount	Can Radial			0.528 in	13.4 mm	1.969 in	50 mm	5.315 "	135 mm
