726-042 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 42POS 0.125

Part	Termination Rows	Material - Insulation	Read Out	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Type	Contact Material	Pitch	Pitch	Number of Positions/Bay/Row	Gender	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Termination	Termination Rows [custom]	Number of Positions/Bay/Row [custom]	Number of Rows [custom]
EDAC Inc. 726-042-541-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in	42	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit Wire Wrap

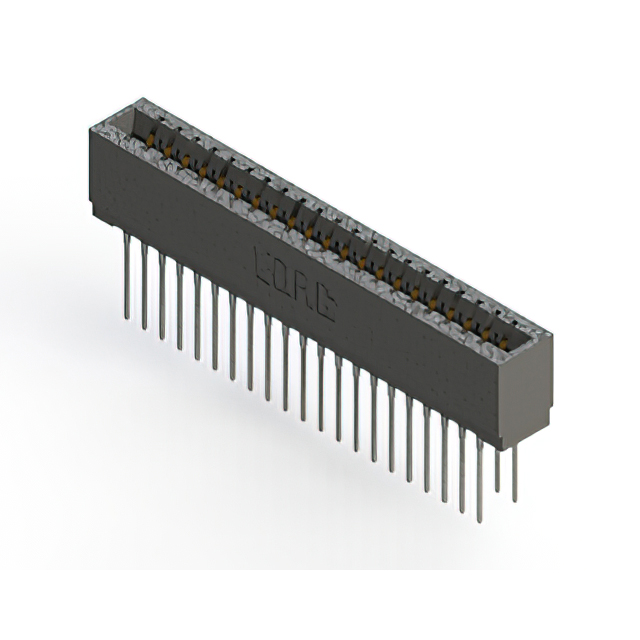

EDAC Inc. 726-042-540-201		Polyester Thermoplastic	Dual		-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in		Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit Wire Wrap	2	21	2
EDAC Inc. 726-042-553-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in	42	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit Wire Wrap
EDAC Inc. 726-042-520-201		Polyester Thermoplastic	Dual		-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in		Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit	2	21	2
EDAC Inc. 726-042-553-201		Polyester Thermoplastic	Dual		-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in		Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit Wire Wrap	2	21	2
EDAC Inc. 726-042-525-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in	42	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit
EDAC Inc. 726-042-525-201		Polyester Thermoplastic	Dual		-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in		Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit	2	21	2
EDAC Inc. 726-042-545-201		Polyester Thermoplastic	Dual		-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in		Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit Wire Wrap	2	21	2

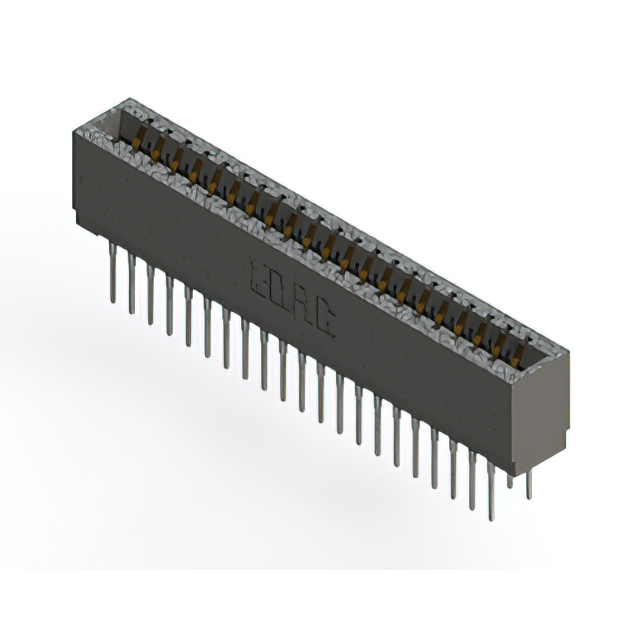

EDAC Inc. 726-042-527-201		Polyester Thermoplastic	Dual		-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in		Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit	2	21	2
EDAC Inc. 726-042-545-101	1	Polyester Thermoplastic	Single	1	-40 C	105 ░C	Black	Cantilever	Copper Alloy	3.18 mm	0.125 in	42	Female	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	Gold	30 Áin	0.76 Ám	42	Press-Fit Wire Wrap
