TPS560430-Q1 Series

Automotive qualified SIMPLE SWITCHER® 4-V to 36-V, 600-mA synchronous step-down converter

Catalog

Automotive qualified SIMPLE SWITCHER® 4-V to 36-V, 600-mA synchronous step-down converter

Part	Voltage - Output (Max) [Max]	Function	Voltage - Input (Max) [Max]	Output Type	Supplier Device Package	Topology	Package / Case	Frequency - Switching	Current - Output	Voltage - Input (Min) [Min]	Voltage - Output (Min/Fixed)	Number of Outputs	Mounting Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max)	Grade	Qualification	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Board Type	Outputs and Type	Outputs and Type	Regulator Topology	Supplied Contents	Voltage - Output	Main Purpose	Output Type
Texas Instruments TPS560430XDBVT	34.2 V	Step-Down	36 V	PFM	SOT-23-6	Buck	SOT-23-6	1.1 MHz	600 mA	4 V	1 V	1	Surface Mount	Positive	-40 °C	125 ¯C
Texas Instruments TPS560430YQDBVRQ1		Step-Down	36 V	Adjustable	SOT-23-6	Buck	SOT-23-6	2.1 MHz	600 mA	4 V	1 V	1	Surface Mount	Positive	-40 °C	125 ¯C	36 V	Automotive	AEC-Q100

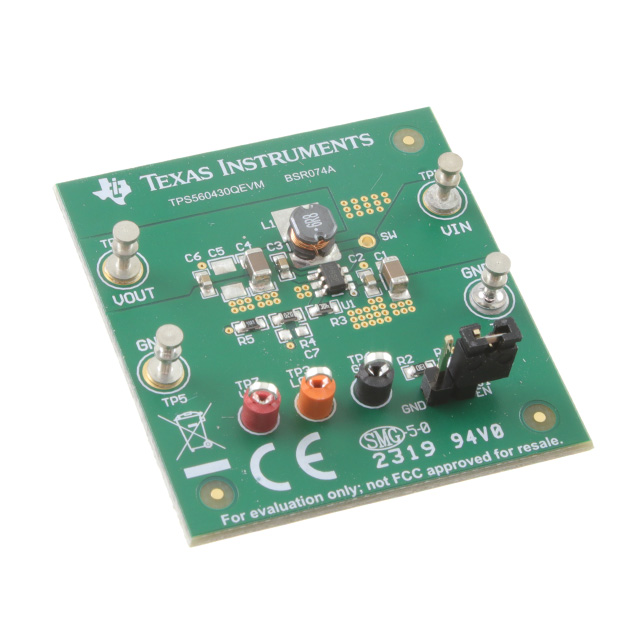

Texas Instruments TPS560430QEVM								2.1 MHz	600 mA											7.5 V	36 V	TPS560430-Q1	Fully Populated	Non-Isolated	1	Buck	Board(s)	5 V	DC/DC Step Down
Texas Instruments TPS560430X3FDBVT		Step-Down	36 V		SOT-23-6	Buck	SOT-23-6	1.1 MHz	600 mA	4 V	3.3 V	1	Surface Mount	Positive	-40 °C	125 ¯C														1.81 mOhm
Texas Instruments TPS560430YDBVR	34.2 V	Step-Down	36 V	PFM	SOT-23-6	Buck	SOT-23-6	2.1 MHz	600 mA	4 V	1 V	1	Surface Mount	Positive	-40 °C	125 ¯C
Texas Instruments TPS560430YFDBVR	34.2 V	Step-Down	36 V		SOT-23-6	Buck	SOT-23-6	2.1 MHz	600 mA	4 V	1 V	1	Surface Mount	Positive	-40 °C	125 ¯C
Texas Instruments TPS560430XFDBVR	34.2 V	Step-Down	36 V		SOT-23-6	Buck	SOT-23-6	1.1 MHz	600 mA	4 V	1 V	1	Surface Mount	Positive	-40 °C	125 ¯C

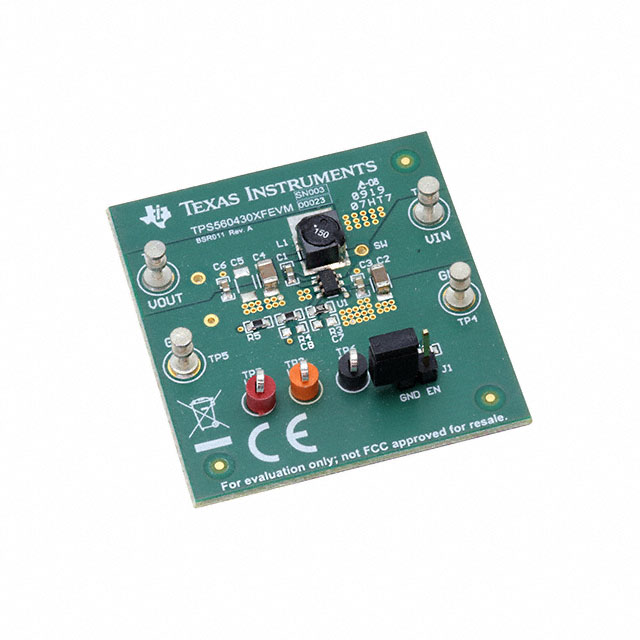

Texas Instruments TPS560430XFEVM								1.1 MHz	600 mA											4 V	36 V	TPS560430	Fully Populated	Non-Isolated	1	Buck	Board(s)	5 V	DC/DC Step Down
Texas Instruments TPS560430YFDBVT	34.2 V	Step-Down	36 V		SOT-23-6	Buck	SOT-23-6	2.1 MHz	600 mA	4 V	1 V	1	Surface Mount	Positive	-40 °C	125 ¯C

Catalog

Automotive qualified SIMPLE SWITCHER® 4-V to 36-V, 600-mA synchronous step-down converter

Key Features

• Qualified for automotive applicationsAEC-Q100 Qualified- Temperature grade 1: –40°C to 125°C ambient operating temperature range- ESD HBM classification level 2- ESD CDM classification level C5Configured for rugged automotive applicationsInput voltage range: 4 V to 36 V600-mA continuous output currentMinimum switching-on time: 60 nsFixed 2.1MHz frequency98% maximum duty cycleSupport startup with pre-biased outputShort circuit protection with hiccup mode±0.5% tolerance voltage reference at room temperaturePrecision enableSmall solution size and ease of useIntegrated synchronous rectificationInternal compensation for ease of useSOT-23-6 packageTwo modes in pin-to-pin compatible packagePFM and forced PWM (FPWM) optionsCreate a custom design using the TPS560430-Q1 with theWEBENCH®Power DesignerQualified for automotive applicationsAEC-Q100 Qualified- Temperature grade 1: –40°C to 125°C ambient operating temperature range- ESD HBM classification level 2- ESD CDM classification level C5Configured for rugged automotive applicationsInput voltage range: 4 V to 36 V600-mA continuous output currentMinimum switching-on time: 60 nsFixed 2.1MHz frequency98% maximum duty cycleSupport startup with pre-biased outputShort circuit protection with hiccup mode±0.5% tolerance voltage reference at room temperaturePrecision enableSmall solution size and ease of useIntegrated synchronous rectificationInternal compensation for ease of useSOT-23-6 packageTwo modes in pin-to-pin compatible packagePFM and forced PWM (FPWM) optionsCreate a custom design using the TPS560430-Q1 with theWEBENCH®Power Designer

Description

The TPS560430-Q1 is a wide-VIN, easy to use synchronous buck converter capable of driving up to 600-mA load current. With a wide input range of 4 V to 36 V, the device is suitable for a wide range of automotive applications for power conditioning from an unregulated source. TPS560430-Q1 operates at 2.1-MHz switching frequency to support use of relatively small inductors for an optimized solution size. It has Eco-mode version to realize high efficiency at light load and FPWM version to achieve constant frequency, small output voltage ripple over the full load range. Soft-start and compensation circuits are implemented internally which allows the device to be used with minimum external components. The device has built-in protection features, such as cycle-by-cycle current limit, hiccup mode short-circuit protection, and thermal shutdown in case of excessive power dissipation. The TPS560430-Q1 is available in SOT-23-6 package. The TPS560430-Q1 is a wide-VIN, easy to use synchronous buck converter capable of driving up to 600-mA load current. With a wide input range of 4 V to 36 V, the device is suitable for a wide range of automotive applications for power conditioning from an unregulated source. TPS560430-Q1 operates at 2.1-MHz switching frequency to support use of relatively small inductors for an optimized solution size. It has Eco-mode version to realize high efficiency at light load and FPWM version to achieve constant frequency, small output voltage ripple over the full load range. Soft-start and compensation circuits are implemented internally which allows the device to be used with minimum external components. The device has built-in protection features, such as cycle-by-cycle current limit, hiccup mode short-circuit protection, and thermal shutdown in case of excessive power dissipation. The TPS560430-Q1 is available in SOT-23-6 package.
