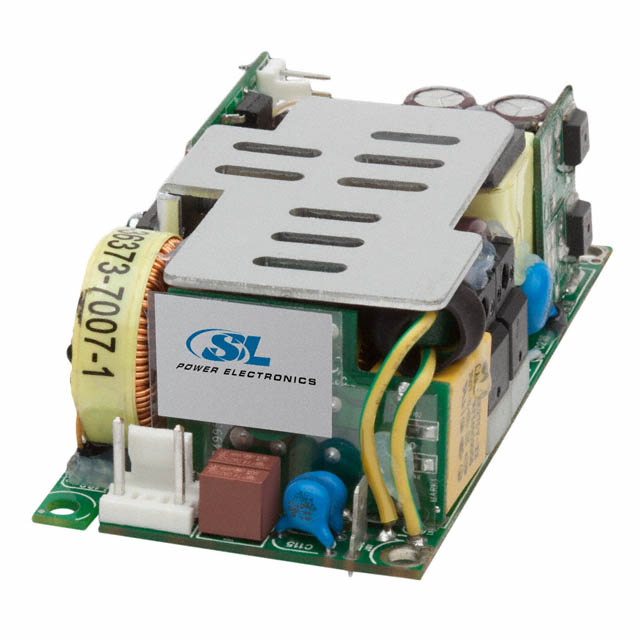

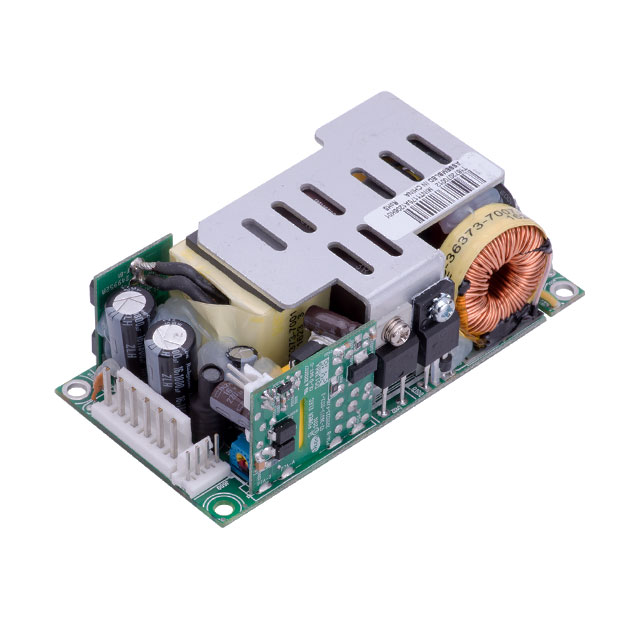

MINT1175 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC CONVERTER 48V 120W

Part	Applications	Number of Outputs	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Approval Agency	Voltage - Output 1	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)	Power (Watts)
SL POWER / Advanced Energy MINT1175A4806K01	Medical	1	2 A	264 VAC	90 VAC	90 %	CE	48 V	4000 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Open Frame	Adjustable Output Remote On/Off Standby Output Universal Input	70 °C	-10 °C	Chassis Mount	120 W	175 W
SL POWER / Advanced Energy MINT1175A1506K01	Medical	1	8 A	264 VAC	90 VAC	90 %	CE	15 V	4000 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Open Frame	Adjustable Output Remote On/Off Standby Output Universal Input	70 °C	-10 °C	Chassis Mount	120 W	175 W
SL POWER / Advanced Energy MINT1175A2406K01	Medical	1	5 A	264 VAC	90 VAC	90 %	CE	24 V	4000 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Open Frame	Adjustable Output Remote On/Off Standby Output Universal Input	70 °C	-10 °C	Chassis Mount	120 W	175 W
SL POWER / Advanced Energy MINT1175A5606K01	Medical	1	2.1 A	264 VAC	90 VAC	90 %	CE	56 V	4000 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Open Frame	Adjustable Output Remote On/Off Standby Output Universal Input	70 °C	-10 °C	Chassis Mount	120 W	175 W
SL POWER / Advanced Energy MINT1175A1206K01	Medical	1	10 A	264 VAC	90 VAC	90 %	CE	12 V	4000 V	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Open Frame	Adjustable Output Remote On/Off Standby Output Universal Input	70 °C	-10 °C	Chassis Mount	120 W	175 W
