1379675 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

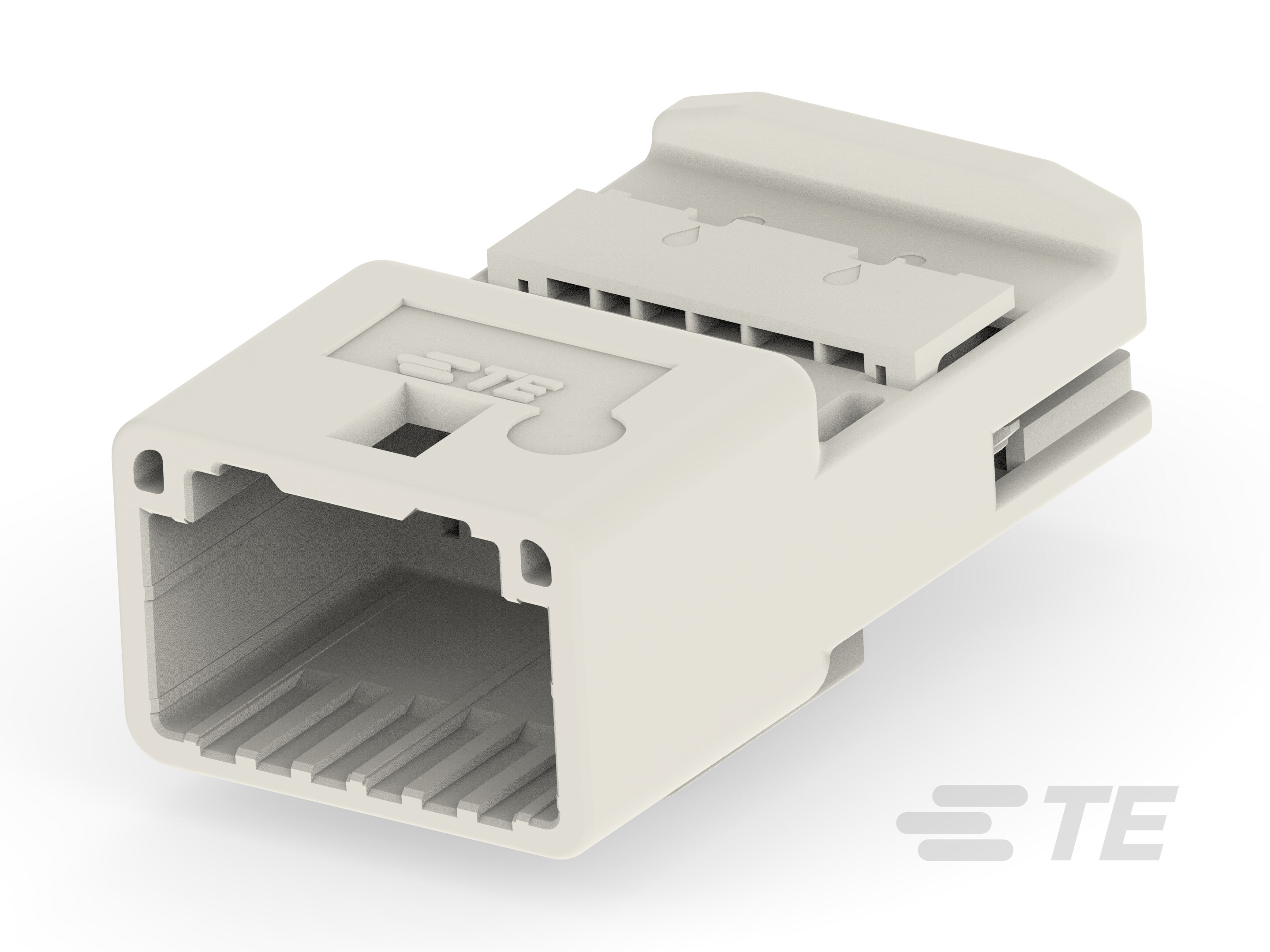

12W TAB HSG ASSY NATURAL
| Part | Number of Rows [custom] | Insulation Material | Number of Positions | Mounting Type | Connector Type | Row Spacing | Row Spacing | Color | Contact Termination | Fastening Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Features | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | Polybutylene Terephthalate (PBT) | 12 | Free Hanging (In-Line) | Receptacle | 3 mm | 0.118 " | Natural | Crimp | Latch Lock | Tab | -40 C | 100 °C | 2.2 mm | 0.087 in | ||
 TE Connectivity AMP Connectors | 2 | Polybutylene Terephthalate (PBT) | 12 | Free Hanging (In-Line) | Plug | 3 mm | 0.118 " | Gray | Crimp | Locking Ramp | Tab | -40 C | 100 °C | 2.2 mm | 0.087 in | Terminal Position Lock (TPA) | |
 TE Connectivity AMP Connectors | 2 | Polybutylene Terephthalate (PBT) | 12 | Free Hanging (In-Line) | Plug | 3 mm | 0.118 " | Black | Crimp | Tab | -40 C | 100 °C | 2.2 mm | 0.087 in | Contacts Not Included |
