PN Series

Electrical Enclosures IP65 NEMA 4X Box with Mounting Brackets (6.3 X 3.2 X 2.2 In)

Manufacturer: BUD INDUSTRIES

Catalog

Electrical Enclosures IP65 NEMA 4X Box with Mounting Brackets (6.3 X 3.2 X 2.2 In)

Catalog

Electrical Enclosures IP65 NEMA 4X Box with Mounting Brackets (6.3 X 3.2 X 2.2 In)

Part	Container Type	Area (L x W)	Area (L x W)	Design	Height [z]	Height [z]	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Thickness	Thickness	Material Flammability Rating	Color	Material	Area (L x W) [custom]	Area (L x W) [custom]	Features	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)	Height	Height	Thickness [custom]	Thickness [custom]	Size / Dimension [z]	Size / Dimension [z]	Type	For Use With/Related Products

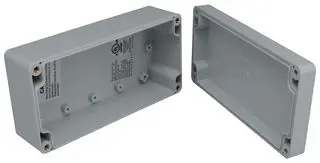

BUD INDUSTRIES PN-1332-A	Box	128 cm²	19.8 in²	Cover Included	2.17 "	55.12 mm	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	3.15 in	6.3 in	160.02 mm	80.01 mm	0.11 in	2.79 mm	UL94 HB	Gray	Plastic Polycarbonate
BUD INDUSTRIES PN-1324-CMB	Box			Cover Included	2.165 in	55 mm	IP65 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X UL-508	4.764 in 121.01 mm	6.732 in 170.99 mm			0.118 in	3 mm	UL94 HB	Clear Cover/Door Gray	Plastic Polycarbonate	32.1 in²	207 cm²	Card Guides Mounting Flange PCB Supports

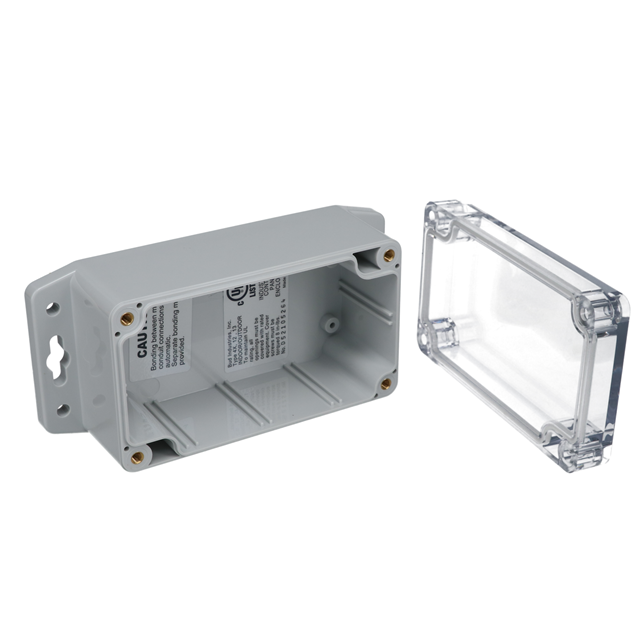

BUD INDUSTRIES PN-1322-ACMB	Box			Cover Included	2.17 "	55.12 mm	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	2.56 in	4.53 "	115.06 mm	65.02 mm	0.12 "	3.05 mm	UL94 HB	Clear Cover/Door Gray	Plastic Polycarbonate				75 cm²	11.6 in²
BUD INDUSTRIES PN-1334	Box	37.2 in²		Cover Included			IP65 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X UL-508	4.724 in	7.874 in	200 mm	119.99 mm	0.12 "	3.05 mm	UL94 HB	Gray	Plastic Polycarbonate			Card Guides PCB Supports			240 cm²	2.958 in	75.13 mm
BUD INDUSTRIES PN-1336-DGMB	Box	146 cm²	22.6 in²	Cover Included	2.362 in	60 mm	IP65 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X UL-508	4.757 in	4.766 in	121.06 mm	120.83 mm	0.118 in	3 mm	UL94 HB	Gray	ABS Plastic			Card Guides Mounting Flange PCB Supports

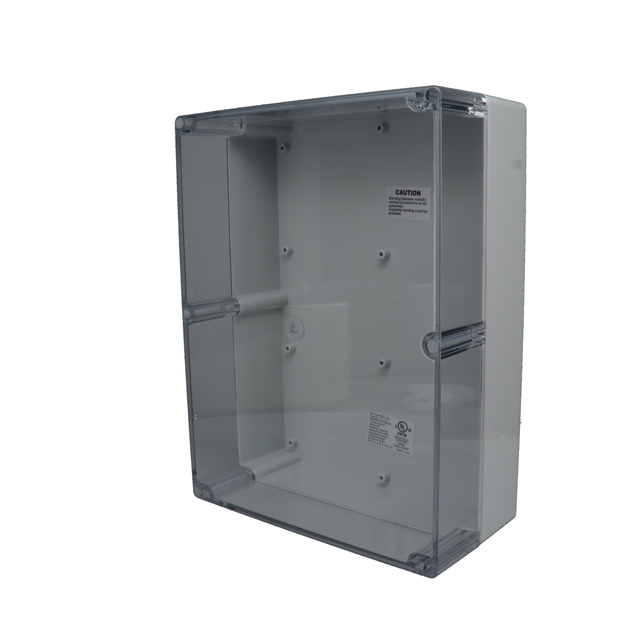

BUD INDUSTRIES PN-1343-AC	Box			Cover Included			12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	9.06 "	11.81 in	299.97 mm	230.12 mm			UL94 HB	Clear Cover/Door Gray	Plastic Polycarbonate	107 in²	690 cm²					4.39 in	111.51 mm	3.56 mm	0.14 in
BUD INDUSTRIES PNX-91426								2.8 in	7.32 in	185.93 mm	71.12 mm				Natural	Aluminum Metal											0.062 in	1.57 mm	Panel Inner	PN Series

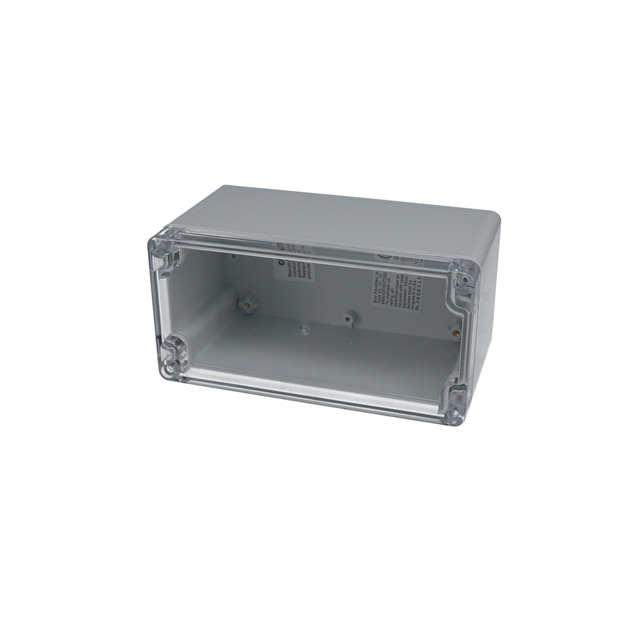

BUD INDUSTRIES PN-1333-AC	Box	128 cm²	19.8 in²	Cover Included	3.35 in	85.09 mm	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508	3.15 in	6.3 in	160.02 mm	80.01 mm			UL94 HB	Clear Cover/Door Gray	Plastic Polycarbonate									3.56 mm	0.14 in
BUD INDUSTRIES PN-1330-DG	Box	26 cm˛	4.03 in˛	Cover Included			IP65 NEMA 1 NEMA 12 NEMA 13 NEMA 2 NEMA 4 NEMA 4X UL-508	1.969 in	2.047 "	52 mm	50 mm	0.1 in	2.54 mm	UL94 HB	Gray	ABS Plastic			Card Guides PCB Supports				1.379 in	35.03 mm

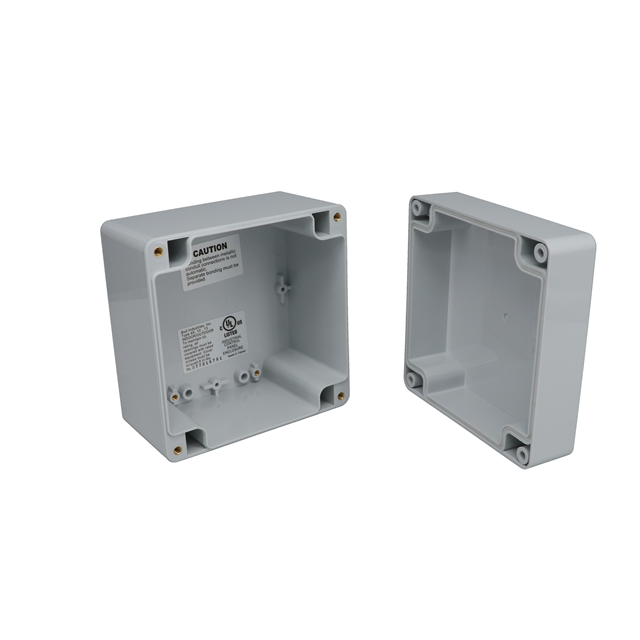

BUD INDUSTRIES PN-1337-A	Box	144 cm²	22.3 in²	Cover Included	3.54 "	89.92 mm	12 13 2 4 4X 6 6P IP68 NEMA 1 UL-508					0.12 "	3.05 mm	UL94 HB	Gray	Plastic Polycarbonate
