LAH9PP Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

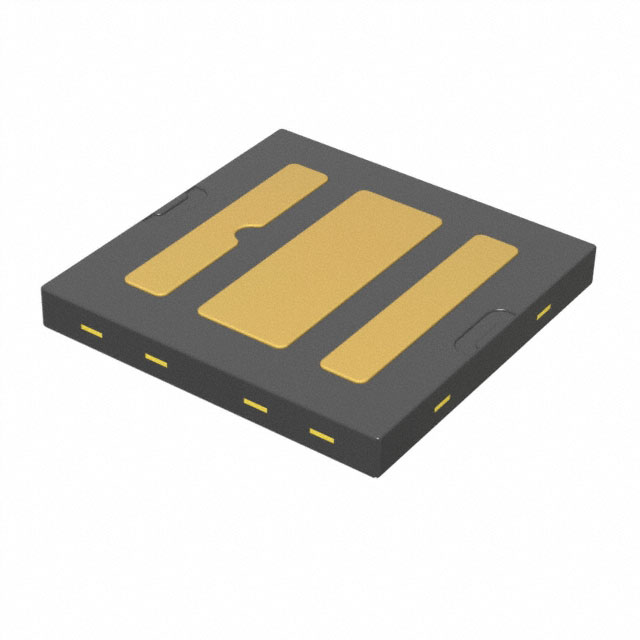

LED OSLON BLK FLAT AMB 618NM SMD
| Part | Thermal Resistance of Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current - Max [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Lumens/Watt @ Current - Test | Wavelength | Wavelength [Max] | Wavelength [Min] | Current - Test | Voltage - Forward (Vf) (Typ) | Supplier Device Package | Mounting Type | Temperature - Test | Viewing Angle | Package / Case | Package / Case | Color | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 6.5 °C/W | 3.85 mm | 3.85 mm | 0.152 in | 0.152 in | 1 A | 0.031 in | 0.8 mm | 83 lm/W | 618 nm | 624 nm | 612 nm | 350 mA | 2.2 V | SMD | Surface Mount | 25 °C | 120 ° | 3838 Metric | 1515 | Amber | 82 lm | 45 lm | 64 lm |
