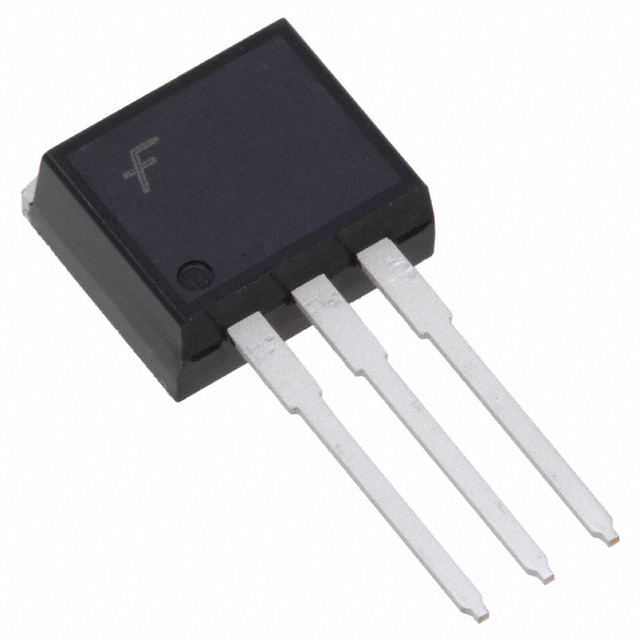

N-Channel PowerTrench<sup>®</sup> 40V, 110A, 2.2mΩ
N-Channel PowerTrench<sup>®</sup> 40V, 110A, 2.2mΩ
| Part | FET Type | Input Capacitance (Ciss) (Max) @ Vds | Supplier Device Package | Mounting Type | Drive Voltage (Max Rds On, Min Rds On) | Operating Temperature [Min] | Operating Temperature [Max] | Vgs (Max) | Drain to Source Voltage (Vdss) | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs [Max] | Package / Case | Power Dissipation (Max) | Grade | Technology | Current - Continuous Drain (Id) @ 25°C | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | N-Channel | 7710 pF | TO-262 (I2PAK) | Through Hole | 10 V | -55 °C | 175 ░C | 20 V | 40 V | 4 V | 138 nC | I2PAK TO-262-3 Long Leads TO-262AA | 176 W | Automotive | MOSFET (Metal Oxide) | 110 A | AEC-Q101 |
