LMX5453 Series

LMX5453 Micro-Module Integrated Bluetooth 2.0 Baseband Controller and Radio

Catalog

LMX5453 Micro-Module Integrated Bluetooth 2.0 Baseband Controller and Radio

Part	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Memory Size	Protocol	GPIO	Mounting Type	Sensitivity	Current - Transmitting [Min]	Current - Transmitting [Max]	Type	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Receiving [Min]	Current - Receiving [Max]	RF Family/Standard	Frequency	Data Rate (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]

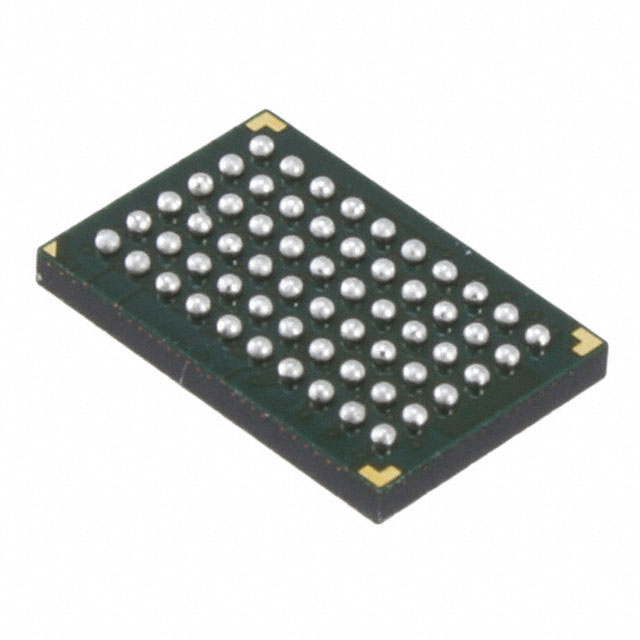

Texas Instruments LMX5453SM/NOPB	9	60-NFBGA	6	16.6 kB 200 kB	Bluetooth v2.0	3	Surface Mount	-80 dBm	12 mA	27 mA	TxRx + MCU	JTAG SPI UART USB	3.6 V	2.5 V	12 mA	26 mA	Bluetooth	2.4 GHz	12 Mbps	60-LFBGA	85 °C	-40 °C

Catalog

LMX5453 Micro-Module Integrated Bluetooth 2.0 Baseband Controller and Radio

Key Features

• The LMX5453 is a drop in replacement for the LMX5452.The LMX5453 has new features added:eSCOeSCO over USB HCI transportEnhanced scatternetInterlaced scanFlushingAudio PCM slave mode supportGeneric PCM configurationCompliant with the Bluetooth 2.0 Core SpecificationBetter than –80 dBm input sensitivityClass 2 operationLow power consumption:Accepts external clock or crystal input:Clocking option 12/13 MHz with PLL bypass mode forpower reduction10-20 MHz external clock or crystal networkSecondary 32.768 kHz oscillator for low-power modesAdvanced power management featuresHigh integration:Implemented in 0.18 µm CMOS technologyRF includes on-chip antenna filter and switchOn-chip firmware with complete HCIEmbedded ROM (200K) and Patch RAM (16.6K) memoryUp to 7 Asynchronous Connection Less (ACL) linksSupport for two simultaneous voice or ExtendedSynchronous Connection Oriented (eSCO) andSynchronous Connection Oriented (SCO) andlinks.Enhanced scatternetInterlaced scanFlushingAudio PCM slave mode supportGeneric PCM configurationFractional-N Sigma/Delta modulatorOperating voltage range 2.5–3.6VI/O voltage range 1.6–3.6V60-pad micro-module BGA package (6.1 mm × 9.1 mm × 1.2 mm)The LMX5453 is a drop in replacement for the LMX5452.The LMX5453 has new features added:eSCOeSCO over USB HCI transportEnhanced scatternetInterlaced scanFlushingAudio PCM slave mode supportGeneric PCM configurationCompliant with the Bluetooth 2.0 Core SpecificationBetter than –80 dBm input sensitivityClass 2 operationLow power consumption:Accepts external clock or crystal input:Clocking option 12/13 MHz with PLL bypass mode forpower reduction10-20 MHz external clock or crystal networkSecondary 32.768 kHz oscillator for low-power modesAdvanced power management featuresHigh integration:Implemented in 0.18 µm CMOS technologyRF includes on-chip antenna filter and switchOn-chip firmware with complete HCIEmbedded ROM (200K) and Patch RAM (16.6K) memoryUp to 7 Asynchronous Connection Less (ACL) linksSupport for two simultaneous voice or ExtendedSynchronous Connection Oriented (eSCO) andSynchronous Connection Oriented (SCO) andlinks.Enhanced scatternetInterlaced scanFlushingAudio PCM slave mode supportGeneric PCM configurationFractional-N Sigma/Delta modulatorOperating voltage range 2.5–3.6VI/O voltage range 1.6–3.6V60-pad micro-module BGA package (6.1 mm × 9.1 mm × 1.2 mm)

Description

The LMX5453 is a highly integrated Bluetooth 2.0 compliant solution. The integrated baseband controller and 2.4 GHz radio combine to form a complete, small form-factor (6.1 mm × 9.1 mm × 1.2 mm) Bluetooth node. The on-chip memory, ROM, and Patch RAM provide lowest cost and minimize design risk with the flexibility of firmware upgrades. The firmware supplied in the on-chip ROM supports a complete Bluetooth Link Manager and HCI with communication through a UART or USB interface. This firmware features point-to-point and point-to-multipoint link management, supporting data rates up to 723 kbps. The radio employs an integrated antenna filter and switch to minimize the number of external components. The radio has a heterodyne receiver architecture with a low intermediate frequency (IF), which enables the IF filters to be integrated on-chip. The transmitter uses direct IQ-modulation with Gaussian-filtered bit-stream data, a voltage-controlled oscillator (VCO) buffer, and a power amplifier. The LMX5453 module is lead free and RoHS (Restriction of Hazardous Substances) compliant. For more information on those quality standards, please visit our green compliance website at ** http://www.national.com/quality/green/ The LMX5453 is a highly integrated Bluetooth 2.0 compliant solution. The integrated baseband controller and 2.4 GHz radio combine to form a complete, small form-factor (6.1 mm × 9.1 mm × 1.2 mm) Bluetooth node. The on-chip memory, ROM, and Patch RAM provide lowest cost and minimize design risk with the flexibility of firmware upgrades. The firmware supplied in the on-chip ROM supports a complete Bluetooth Link Manager and HCI with communication through a UART or USB interface. This firmware features point-to-point and point-to-multipoint link management, supporting data rates up to 723 kbps. The radio employs an integrated antenna filter and switch to minimize the number of external components. The radio has a heterodyne receiver architecture with a low intermediate frequency (IF), which enables the IF filters to be integrated on-chip. The transmitter uses direct IQ-modulation with Gaussian-filtered bit-stream data, a voltage-controlled oscillator (VCO) buffer, and a power amplifier. The LMX5453 module is lead free and RoHS (Restriction of Hazardous Substances) compliant. For more information on those quality standards, please visit our green compliance website at ** http://www.national.com/quality/green/
