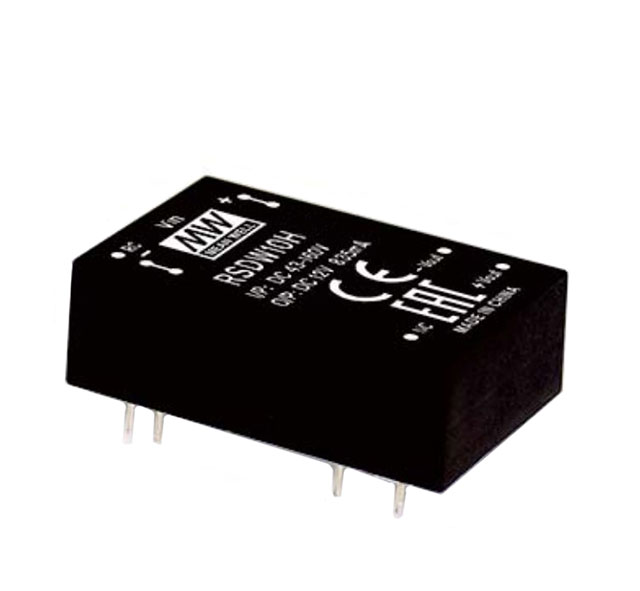

RSDW10H Series

Catalog

DC/DC CONVERTER

Part	Package / Case	Current - Output (Max) [Max]	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Isolation	Approval Agency	Applications	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Type	Efficiency	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]
MEAN WELL USA Inc. RSDW10H-15	24-DIP Module 9 Leads	666 mA	10 W	43 V	3000 V	CE EAC UKCA	ITE (Commercial)	15 V	-40 °C	85 °C	Isolated Module	88 %	Remote On/Off	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	Through Hole	1	160 V
MEAN WELL USA Inc. RSDW10H-05	24-DIP Module 9 Leads	2 A	10 W	43 V	3000 V	CE EAC UKCA	ITE (Commercial)	5 V	-40 °C	85 °C	Isolated Module	87 %	Remote On/Off	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	Through Hole	1	160 V
