JB15LPE Series

Catalog

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Part	Switch Travel	Mechanical Life	Actuator Material	Illumination Voltage (Nominal)	Termination Style	Actuator Type	Switch Function	Illumination Type, Color	Circuit	Mounting Type	Features	Outline [x]	Outline [y]	Ingress Protection	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating @ Voltage	Illumination
NKK Switches JB15LPE-BB	0.25 mm	5000000 Cycles	Polyacetal	2 VDC	PC Pin	Square Button	Off-Mom	LED Yellow	SPST-NO	Through Hole	Process Sealed	10 mm	10 mm	IP67 - Dust Tight Waterproof	Top Actuated	11.2 mm	176 gf	-25 °C	70 °C	0.05 A 24 VDC	Illuminated
NKK Switches JB15LPE-BE	0.25 mm	5000000 Cycles	Polyacetal	2 VDC	PC Pin	Square Button	Off-Mom	LED Yellow	SPST-NO	Through Hole	Process Sealed	10 mm	10 mm	IP67 - Dust Tight Waterproof	Top Actuated	11.2 mm	176 gf	-25 °C	70 °C	0.05 A 24 VDC	Illuminated

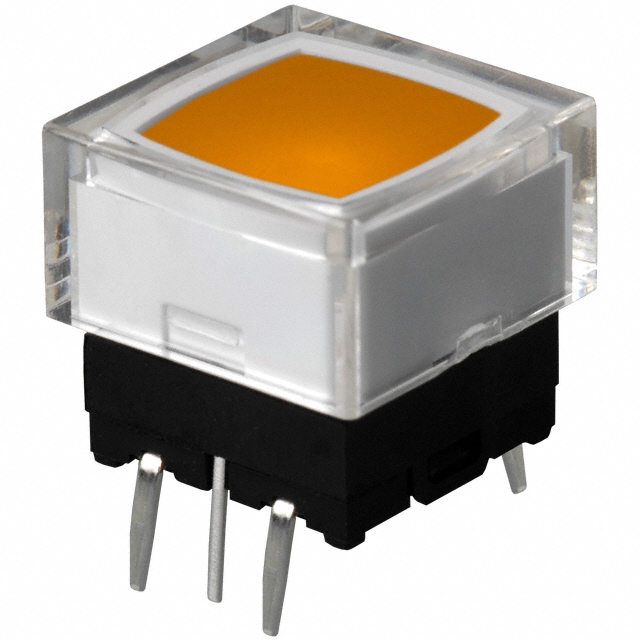

NKK Switches JB15LPE-JE	0.25 mm	5000000 Cycles	Polyacetal	2 VDC	PC Pin	Square Button	Off-Mom	LED Yellow	SPST-NO	Through Hole	Process Sealed	10 mm	10 mm	IP67 - Dust Tight Waterproof	Top Actuated	11.2 mm	176 gf	-25 °C	70 °C	0.05 A 24 VDC	Illuminated

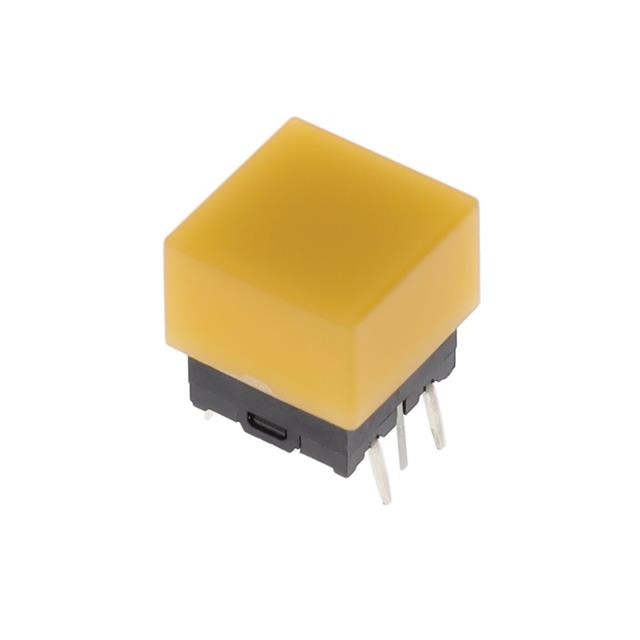

NKK Switches JB15LPE-E	0.25 mm	5000000 Cycles	Polyacetal	2 VDC	PC Pin	Square Button	Off-Mom	LED Yellow	SPST-NO	Through Hole	Process Sealed	10 mm	10 mm	IP67 - Dust Tight Waterproof	Top Actuated	11.2 mm	176 gf	-25 °C	70 °C	0.05 A 24 VDC	Illuminated
