THS311 Series

Catalog

IC OPAMP CFA 2 CIRCUIT 14SOIC

Part	Voltage - Supply Span (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Amplifier Type	Current - Input Bias	-3db Bandwidth	Mounting Type	Slew Rate	Package / Case [x]	Package / Case [y]	Package / Case	Voltage - Input Offset	Current - Supply	Voltage - Supply Span (Max) [Max]	Current - Output / Channel [custom]	Number of Circuits	Supplier Device Package	Package / Case [custom]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplied Contents	Output Type	Board Type	Utilized IC / Part	Current - Supply (Main IC)	Channels per IC
Texas Instruments THS3115IDR	10 V	85 °C	-40 °C	Current Feedback	330 nA	110 MHz	Surface Mount	1550 V/µs	0.154 in	3.9 mm	14-SOIC	3 mV	4.9 mA	30 V	270 mA	2
Texas Instruments THS3115CDR	10 V	70 °C	0 °C	Current Feedback	330 nA	110 MHz	Surface Mount	1550 V/µs	0.154 in	3.9 mm	14-SOIC	3 mV	4.9 mA	30 V	270 mA	2
Texas Instruments THS3110CD	10 V	70 °C	0 °C	Current Feedback	1.5 µA	100 MHz	Surface Mount	1300 V/µs	0.154 in	3.9 mm	8-SOIC	3 mV	4.8 mA	30 V	260 mA	1	8-SOIC
Texas Instruments THS3115CD	10 V	70 °C	0 °C	Current Feedback	330 nA	110 MHz	Surface Mount	1550 V/µs	0.154 in	3.9 mm	14-SOIC	3 mV	4.9 mA	30 V	270 mA	2
Texas Instruments THS3110CDGNR	10 V	70 °C	0 °C	Current Feedback	1.5 µA	100 MHz	Surface Mount	1300 V/µs			8-MSOP 8-TSSOP Exposed Pad	3 mV	4.8 mA	30 V	260 mA	1	8-HVSSOP	0.118 in 3 mm

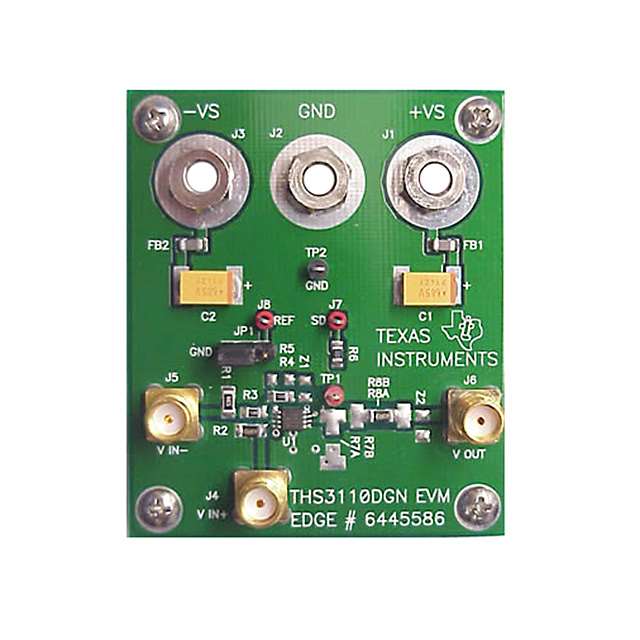

Texas Instruments THS3110EVM				Current Feedback		100 MHz		1300 V/µs							260 mA				-5 V 10 V	15 V 30 V	Board(s)	Single-Ended	Fully Populated	THS3110	4.8 mA	1 - Single
Texas Instruments THS3111CDR	10 V	70 °C	0 °C	Current Feedback	1.5 µA	100 MHz	Surface Mount	1300 V/µs	0.154 in	3.9 mm	8-SOIC	3 mV	4.8 mA	30 V	260 mA	1	8-SOIC
Texas Instruments THS3110CDGN	10 V	70 °C	0 °C	Current Feedback	1.5 µA	100 MHz	Surface Mount	1300 V/µs			8-MSOP 8-TSSOP Exposed Pad	3 mV	4.8 mA	30 V	260 mA	1	8-HVSSOP	0.118 in 3 mm
Texas Instruments THS3115IDRG4	10 V	85 °C	-40 °C	Current Feedback	330 nA	110 MHz	Surface Mount	1550 V/µs	0.154 in	3.9 mm	14-SOIC	3 mV	4.9 mA	30 V	270 mA	2
Texas Instruments THS3112IDR	10 V	85 °C	-40 °C	Current Feedback	330 nA	110 MHz	Surface Mount	1550 V/µs	0.154 in	3.9 mm	8-SOIC	3 mV	4.9 mA	30 V	270 mA	2	8-SOIC
