LTGZO511 Series
Manufacturer: Carling Technologies
Beta
⌘K

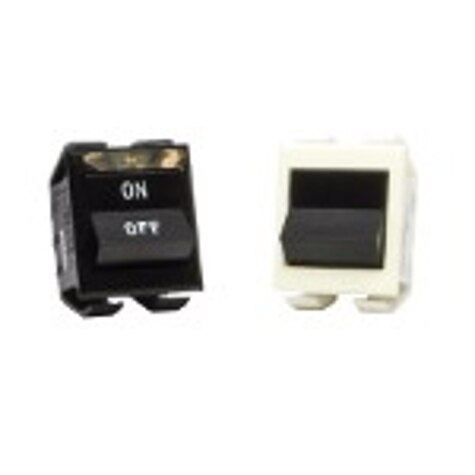

ROCKER SWITCHES LTGZO511TBBA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Actuator Marking | Voltage Rating - AC | Termination Style | Circuit | Actuator Type | Switch Function | Current Rating (Amps) | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Color - Actuator/Cap | Electrical Life | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 0 °C | 85 °C | CSA UL | No Marking | 125 V | Quick Connect - 0.250" (6.3mm) | DPST | Concave (Standard V) | On-Off | 15 A | Panel Mount Snap-In | 25.4 mm | 28.58 mm | Black | 50000 Cycles | ||
Carling Technologies | 0 °C | 85 °C | CSA UL | No Marking | 125 V | Quick Connect - 0.250" (6.3mm) | DPST | Concave (Standard V) - Illuminated | On-Off | 15 A | Panel Mount Snap-In | 25.4 mm | 28.58 mm | Black | 50000 Cycles | 250 VAC | Neon |
