887-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K

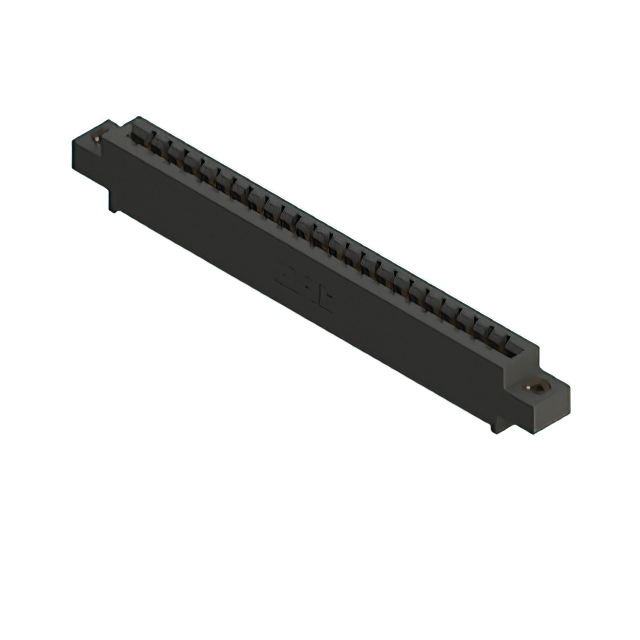

CONN EDGE SGL FMALE 23POS 0.156
| Part | Termination Rows | Material - Insulation | Gender | Card Type | Number of Positions/Bay/Row | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Pitch | Pitch | Color | Mounting Type | Termination | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | 0.156 " | 3.96 mm | |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Right Angle Through Hole | Solder | Single | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Solder | Single | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyphenylene Sulfide (PPS) | Female | Non Specified - Single Edge | 23 | 23 | 1 | 0.25 Ám | 10 Áin | 125 °C | -40 C | Copper Alloy | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | 3.96 mm | 0.156 in | Black | Through Hole | Wire Wrap | Single | M3 Threaded Insert Top Mount Opening |
