82-5153 Series
Manufacturer: EAO
Beta
⌘K

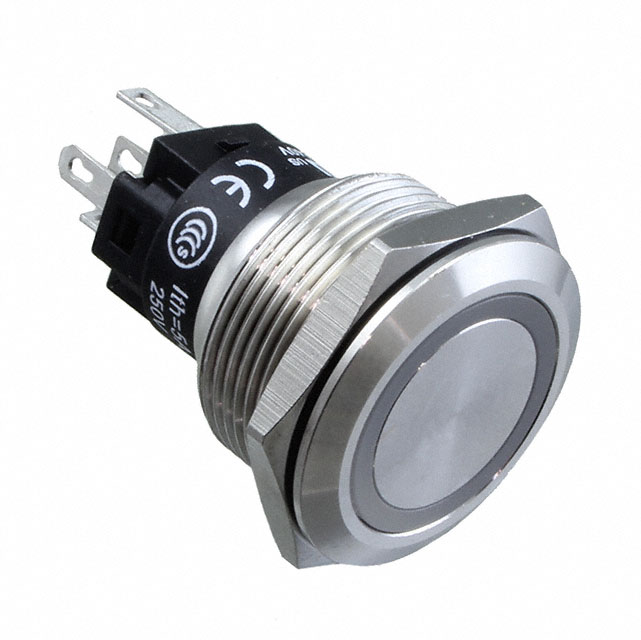

VANDAL RESISTANT SWITCH, 19MM, SPDT, 82 SERIES, MOMENTARY SPRING RETURN, GREEN
| Part | Mechanical Life | Electrical Life | Current Rating (Amps) | Mounting Type | Termination Style | Voltage Rating - AC | Voltage Rating - DC | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Actuator Type | Ingress Protection | Illumination Voltage (Nominal) | Switch Function | Type | Panel Cutout Dimensions [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 1000000 Cycles | 50000 Cycles | 200 mA | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 24 V | 24 V | Silver | No Marking | Green LED | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | 6 VAC/DC | On-Mom | Illuminated Standard | 19 mm | |
 EAO | 1000000 Cycles | 50000 Cycles | 200 mA | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 24 V | 24 V | Silver | No Marking | Blue LED | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | 24 VAC/DC | On-Mom | Illuminated Standard | 19 mm | |
EAO | 1000000 Cycles | 50000 Cycles | 200 mA | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 24 V | 24 V | Silver | No Marking | Blue LED | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | 12 VAC/DC | On-Mom | Illuminated Standard | 19 mm | |
EAO | 500000 Cycles | 50000 Cycles | 200 mA | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 24 V | 24 V | Silver | No Marking | Blue LED | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | On-On | Illuminated Standard | 19 mm | ||

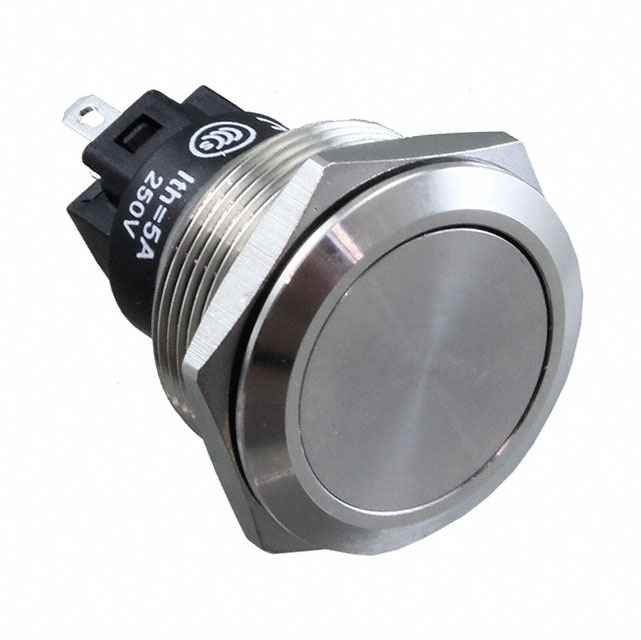

 EAO | 500000 Cycles | 50000 Cycles | 200 mA | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 24 V | 24 V | Silver | No Marking | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | On-On | Standard | 19 mm | Stainless Steel | ||
EAO | 500000 Cycles | 50000 Cycles | 200 mA | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 24 V | 24 V | Silver | No Marking | Green LED | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | 24 VAC/DC | On-On | Illuminated Standard | 19 mm | |
 EAO | 1000000 Cycles | 50000 Cycles | 200 mA | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 24 V | 24 V | Silver | No Marking | Blue LED | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | 6 VAC/DC | On-Mom | Illuminated Standard | 19 mm | Stainless Steel |
EAO | 1000000 Cycles | 50000 Cycles | 3 A | Panel Mount Front | Solder Quick Connect - 0.110" (2.8mm) | 240 V | 240 VDC | Silver | No Marking | Green/Red LED | -30 ░C | 70 °C | SPDT | Button Flush Round | IP65 IP67 | 24 VAC/DC | On-Mom | Illuminated Standard | 19 mm |
