EL03F Series
Manufacturer: WITHWAVE CO LTD
Beta
⌘K

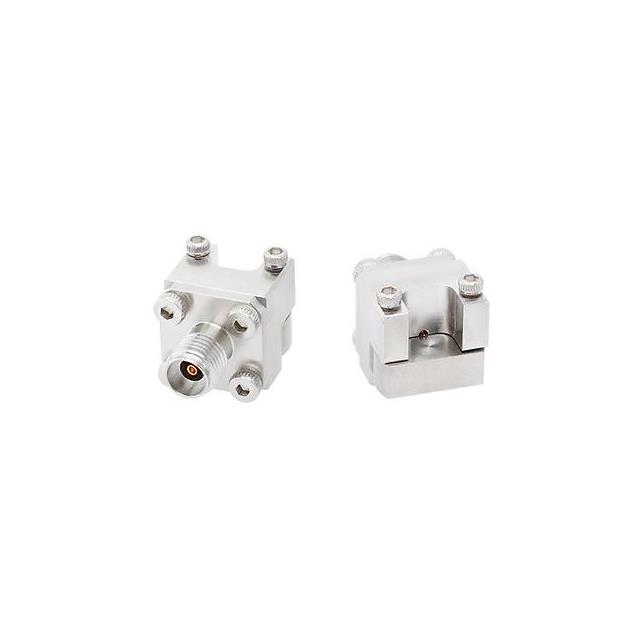

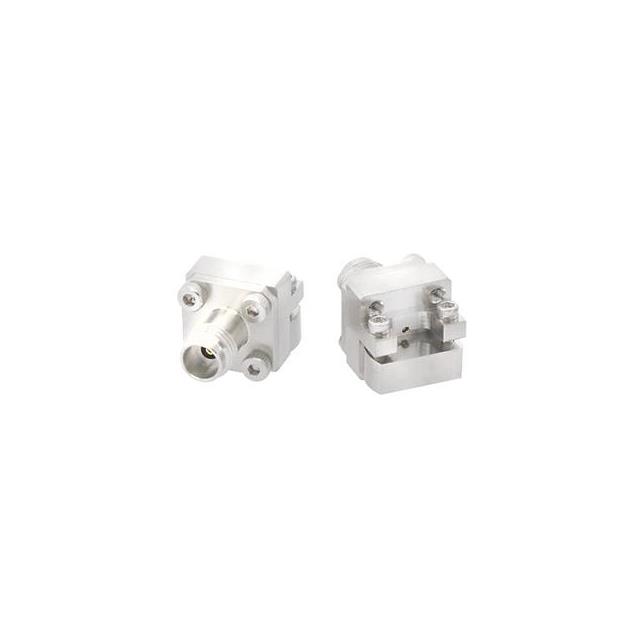

END LAUNCH 2.92 MM CONNECTOR(DC
| Part | Center Contact Plating | Body Material | Mounting Type | Connector Type | Frequency - Max [Max] | Fastening Type | Connector Style [x] | Number of Ports | Impedance | Contact Termination | Center Contact Material | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WITHWAVE CO LTD | Gold | Stainless Steel | Board Edge End Launch | Receptacle Female Socket | 40 GHz | Threaded | 2.92 mm | 1 | 50 Ohms | Compression | Beryllium Copper | Screw |
 WITHWAVE CO LTD | Gold | Stainless Steel | Board Edge End Launch | Receptacle Female Socket | 40 GHz | Threaded | 2.92 mm | 1 | 50 Ohms | Compression | Beryllium Copper | Screw |
