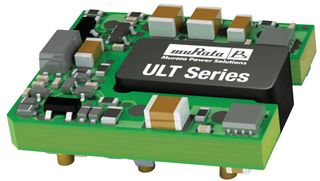

ULT-12 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, THIRTY SECOND BRICK, DOSA, 2:1, 30 W, 1 OUTPUT, 12 V

Part	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Power (Watts)	Voltage - Output 1	Voltage - Isolation	Features	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Efficiency	Applications	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]
Murata Electronics ULT-12/2.5-D48N-C	Active Low Enable	85 °C	-40 C	8-DIP Module 1/32 Brick	Isolated Module	30 Watts	12 V	1.5 kV	Remote On/Off UVLO	Through Hole	36 V	2.5 A	1	91 %	ITE (Commercial)	8.9 mm	23.4 mm	19.1 mm	0.75 in	0.92 "	0.35 in	75 V
Murata Electronics ULT-12/2.5-D48P-C	Active High Enable	85 °C	-40 C	8-DIP Module 1/32 Brick	Isolated Module	30 Watts	12 V	1.5 kV	Remote On/Off UVLO	Through Hole	36 V	2.5 A	1	91 %	ITE (Commercial)	8.9 mm	23.4 mm	19.1 mm	0.75 in	0.92 "	0.35 in	75 V
Murata Electronics ULT-12/2.5-D48NM-C	Active Low Enable	85 °C	-40 C	8-SMD Module 1/32 Brick	Isolated Module	30 Watts	12 V	1.5 kV	Remote On/Off UVLO	Surface Mount	36 V	2.5 A	1	91 %	ITE (Commercial)	8.9 mm	23.4 mm	19.1 mm	0.75 in	0.92 "	0.35 in	75 V
