FMAC Series

Catalog

LINE FILTER 480V/520VAC 16A CHAS

Part	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Inductance	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Applications	Voltage - Rated AC	Filter Type	Approval Agency	Configuration

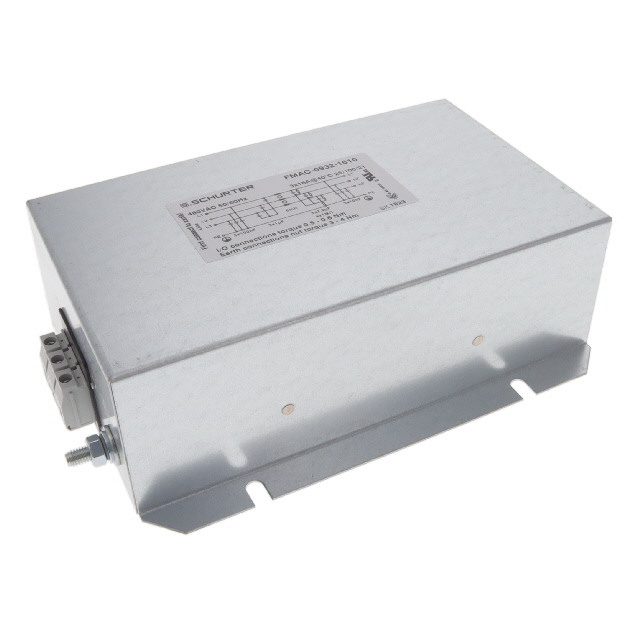

SCHURTER Inc. FMAC-0932-1610	Terminal Block	100 °C	-25 °C	Chassis Mount	6 mH	60 Hz	50 Hz	16 A	Photovoltaic Inverter	480 V 520 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage
SCHURTER Inc. FMAC-0956-H310	Terminal Block	100 °C	-25 °C	Chassis Mount	300 µH	60 Hz	50 Hz	250 A	Photovoltaic Inverter	480 V 520 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage

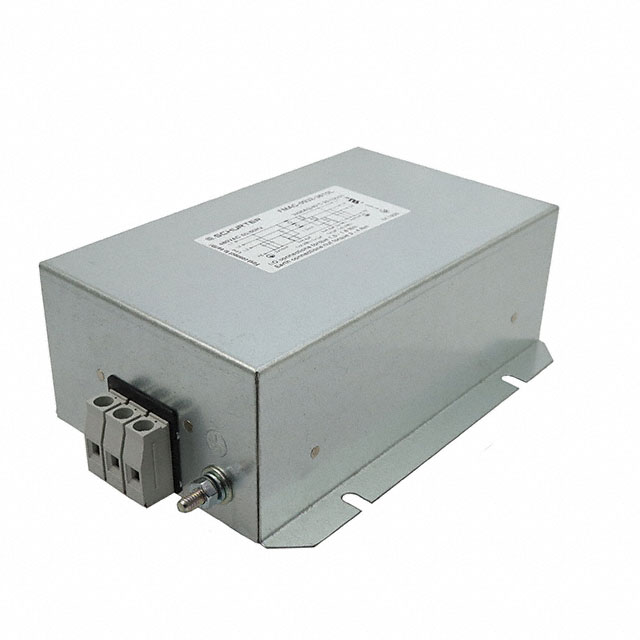

SCHURTER Inc. FMAC-0932-3610L	Terminal Block	100 °C	-25 °C	Chassis Mount	1.5 mH	60 Hz	50 Hz	36 A	Photovoltaic Inverter	480 V 520 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage

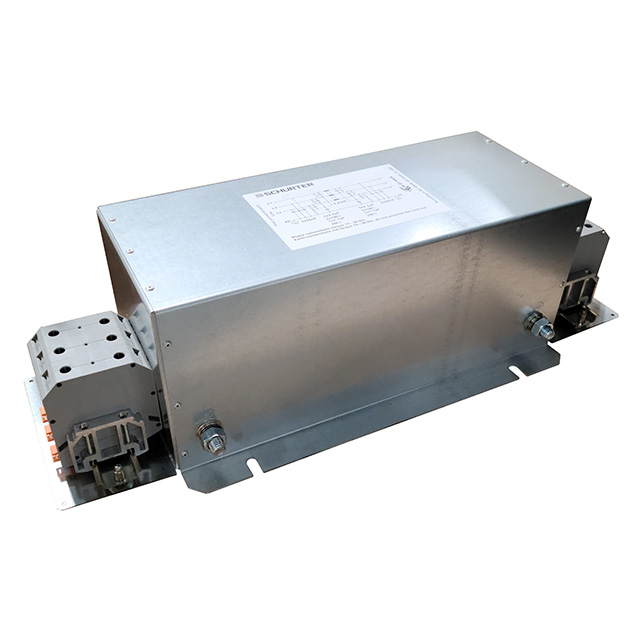

SCHURTER Inc. FMAC-0955-H212I	Terminal Block	100 °C	-25 °C	Chassis Mount	400 µH	60 Hz	50 Hz	180 A	Photovoltaic Inverter	480 V 520 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage

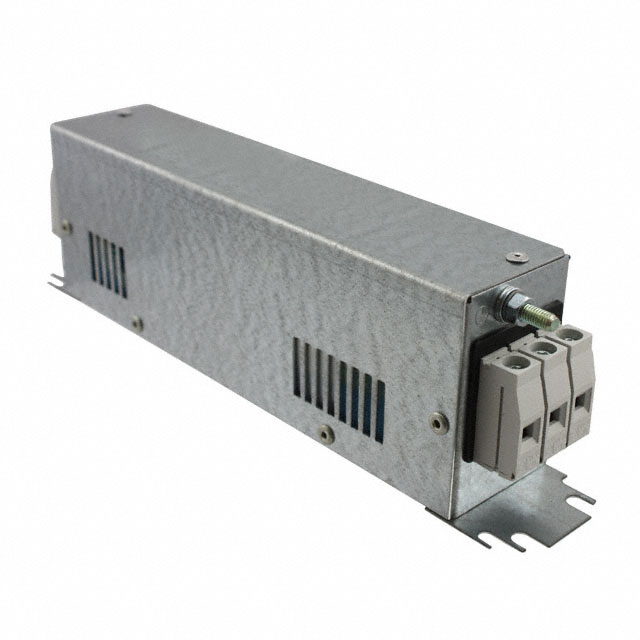

SCHURTER Inc. FMAC-091D-3610	Terminal Block	100 °C	-25 °C	Chassis Mount	570 µH	60 Hz	50 Hz	36 A	Inverters Power Drive Systems	480 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage

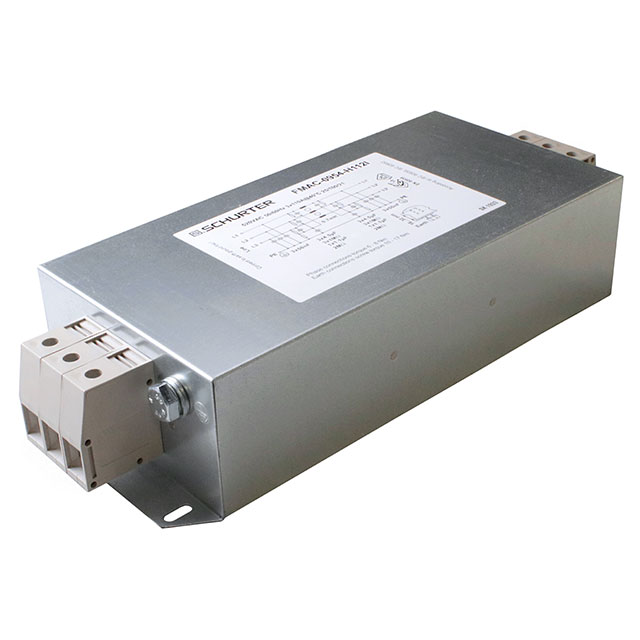

SCHURTER Inc. FMAC-0954-H112I	Terminal Block	100 °C	-25 °C	Chassis Mount	700 µH	60 Hz	50 Hz	110 A	Photovoltaic Inverter	480 V 520 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage
SCHURTER Inc. FMAC-091C-2510	Terminal Block	100 °C	-25 °C	Chassis Mount	450 µH	60 Hz	50 Hz	25 A	Inverters Power Drive Systems	480 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage

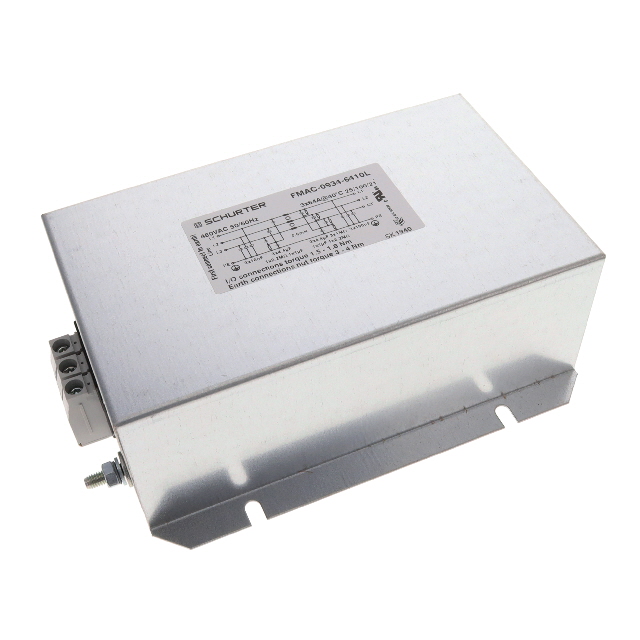

SCHURTER Inc. FMAC-0934-6410L	Terminal Block	100 °C	-25 °C	Chassis Mount	600 µH	60 Hz	50 Hz	64 A	Photovoltaic Inverter	480 V 520 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage
SCHURTER Inc. FMAC-091G-H210	Terminal Block	100 °C	-25 °C	Chassis Mount	480 µH	60 Hz	50 Hz	150 A	Inverters Power Drive Systems	480 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage

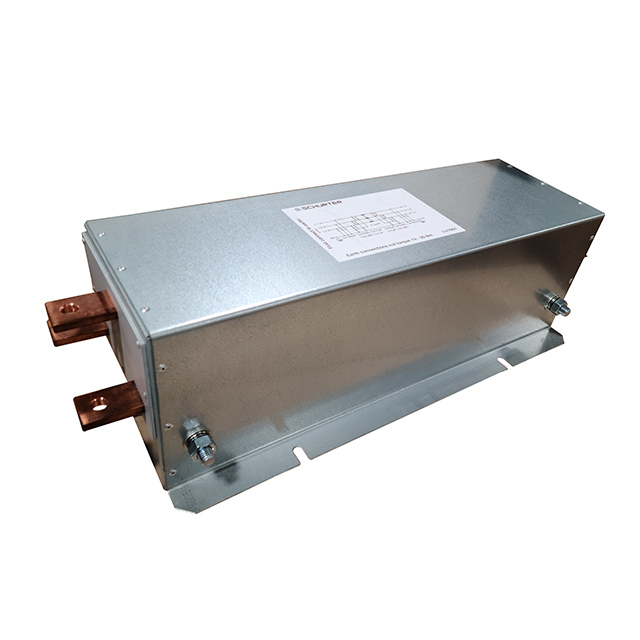

SCHURTER Inc. FMAC-0957-H650	Terminal Post	100 °C	-25 °C	Chassis Mount	200 µH	60 Hz	50 Hz	550 A	Photovoltaic Inverter	480 V 520 V	Three Phase (Delta)	cURus ENEC VDE	Single Stage
