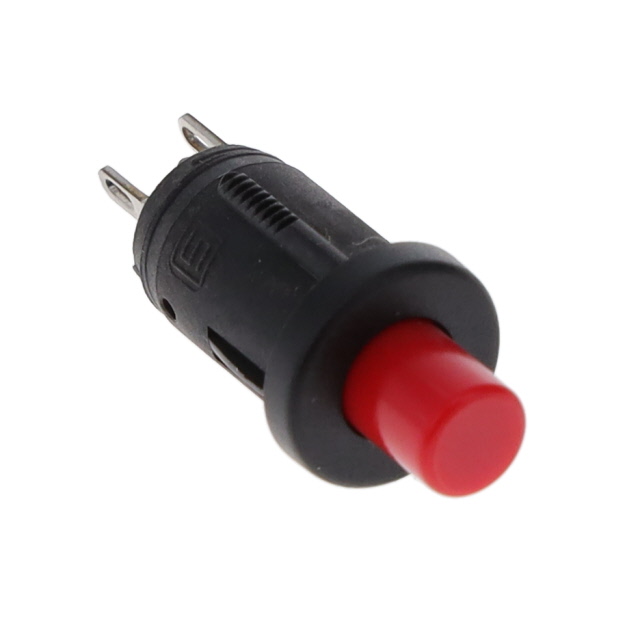

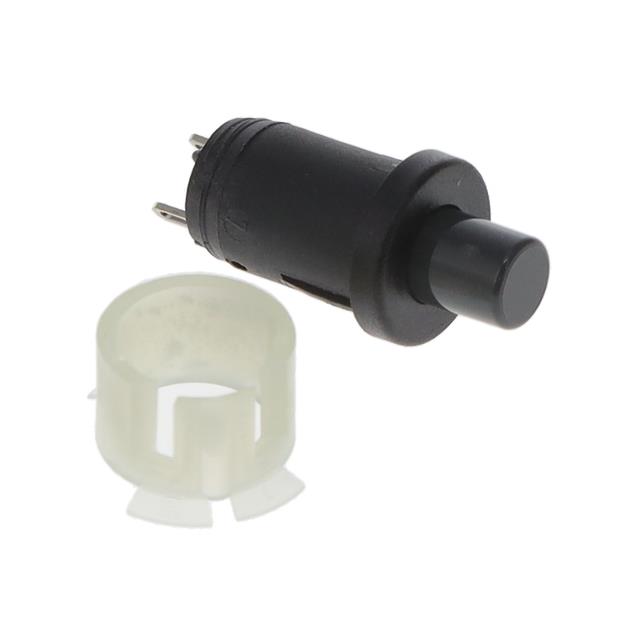

0041.8841 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
SWITCH PUSH SPST-NO 200MA 60V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Type | Circuit | Current Rating (Amps) | Actuator Marking | Panel Cutout Dimensions [diameter] | Switch Function | Actuator Type | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating - DC | Color - Actuator/Cap | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 10000 Steps | 10000 Cycles | 60 V | Standard | SPST-NO | 200 mA | No Marking | 8 mm | Off-Mom | Button Round | IP40 | 85 °C | -25 °C | Panel Mount Front | 50 VDC | Red | Solder Lug |
 SCHURTER Inc. | 10000 Steps | 10000 Cycles | 60 V | Standard | SPST-NO | 200 mA | No Marking | 8 mm | Off-Mom | Button Round | IP40 | 85 °C | -25 °C | Panel Mount Front | 50 VDC | Solder Lug |
