HMB12 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

RELAY GEN PURPOSE DPDT 2A 26.5V

Part	Must Release Voltage	Coil Voltage	Contact Material	Release Time	Operate Time	Termination Style	Contact Rating (Current)	Coil Resistance	Contact Form	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Must Operate Voltage	Seal Rating	Mounting Type	Relay Type	Switching Voltage	Grade	Qualification
TE Connectivity Aerospace, Defense and Marine HMB1230K01L	1.5 VDC	26.5 VDC	Gold (Au) Silver (Ag)	5 ms	5 ms	PC Pin	2 A	700 Ohms	DPDT (2 Form C)	Non Latching	125 °C	-65 ░C	37.9 mA	15 VDC	Sealed - Hermetically	Chassis Mount	General Purpose
TE Connectivity Aerospace, Defense and Marine HMB1201G01P	0.7 VDC	12 VDC	Gold (Au) Silver (Ag)	5 ms	5 ms	PC Pin	2 A	160 Ohms	DPDT (2 Form C)	Non Latching	125 °C	-65 ░C	75 mA	7.2 VDC	Sealed - Hermetically	Through Hole	General Purpose
TE Connectivity Aerospace, Defense and Marine 1-1617038-9	0.7 VDC	12 VDC		5 ms	5 ms	PC Pin	2 A	160 Ohms	DPDT (2 Form C)	Non Latching	125 °C	-65 ░C	75 mA	7.2 VDC	Sealed - Hermetically	Through Hole	General Purpose	28 VDC
TE Connectivity Aerospace, Defense and Marine HMB1201K01M	1.5 VDC	26.5 VDC	Gold (Au) Silver (Ag)	5 ms	5 ms	PC Pin	2 A	700 Ohms	DPDT (2 Form C)	Non Latching	125 °C	-65 ░C	37.9 mA	15 VDC	Sealed - Hermetically	Through Hole	General Purpose		Military	MIL-R-39016/22
TE Connectivity Aerospace, Defense and Marine HMB1230F01M	0.35 VDC		Gold (Au) Silver (Ag)	5 ms	5 ms	PC Pin	2 A	40 Ohms	DPDT (2 Form C)	Non Latching	125 °C	-65 ░C	150 mA	3.6 VDC	Sealed - Hermetically	Chassis Mount	General Purpose

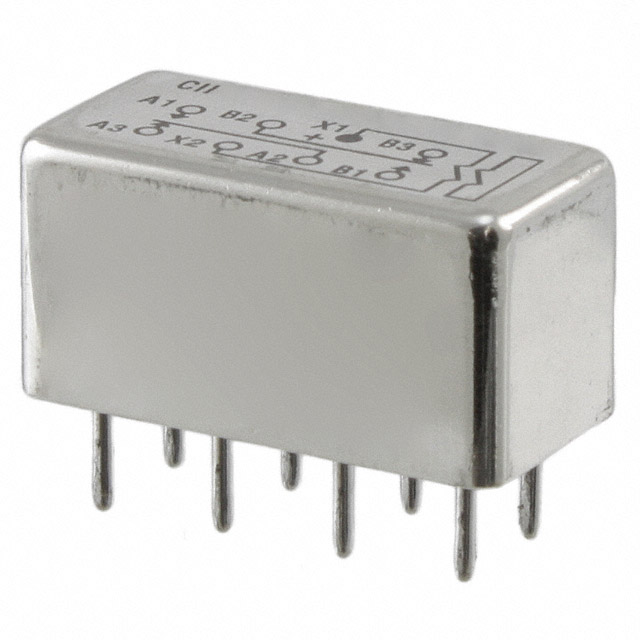

TE Connectivity Aerospace, Defense and Marine HMB1201K01P	1.5 VDC	26.5 VDC	Gold (Au) Silver (Ag)	5 ms	5 ms	PC Pin	2 A	699.2 Ohms	DPDT (2 Form C)	Non Latching	125 °C	-65 ░C	37.9 mA	15 VDC	Sealed - Hermetically	Through Hole	General Purpose		Military
