CDLCBST Series

Catalog

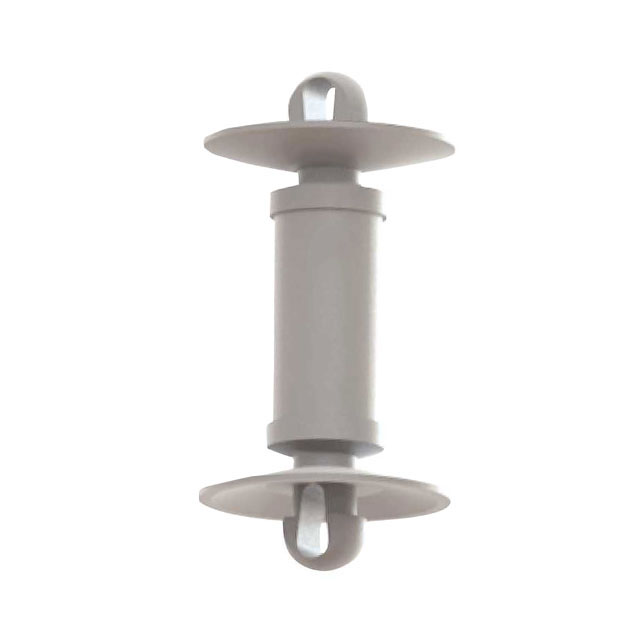

CUPPED DUAL CBS TEARDROP 9/16"

Part	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Type	Holding Type	Between Board Height	Between Board Height	Between Board Height	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Material	Features	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Essentra Components CDLCBST-9-01	0.062 "	0.0625 "	1.57 mm	Snap Lock	Snap Lock	0.563 in	14.3 mm	9 "	2.54 mm	0.1 in	Nylon	Winged	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CDLCBST-8-01	0.062 "	0.0625 "	1.57 mm	Snap Lock	Snap Lock	0.5 in	12.7 mm	0.5 in	2.54 mm	0.1 in	Nylon	Winged	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CDLCBST-10-01	0.062 "	0.0625 "	1.57 mm	Snap Lock	Snap Lock	0.625 in	15.88 mm	5 8	2.54 mm	0.1 in	Nylon	Winged	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CDLCBST-5-01	0.062 "	0.0625 "	1.57 mm	Snap Lock	Snap Lock	0.313 in	7.95 mm	0.3125 in	2.54 mm	0.1 in	Nylon	Winged	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CDLCBST-6-01	0.062 "	0.0625 "	1.57 mm	Snap Lock	Snap Lock	0.375 in	9.53 mm	0.375 "	2.54 mm	0.1 in	Nylon	Winged	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
