8894-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Contact Material	Contact Finish	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Tail Type	Mounting Hole Diameter	Mounting Hole Diameter	Termination
Mill-Max Manufacturing Corp. 8894-0-15-80-12-14-10-0	-55 C	125 °C	2.54 mm	0.1 in	Beryllium Copper	Gold	0.1 in	2.54 mm	0.068 in	1.73 mm	0.25 Ám	10 Áin	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	0.059 in	1.5 mm	Hex Press-Fit

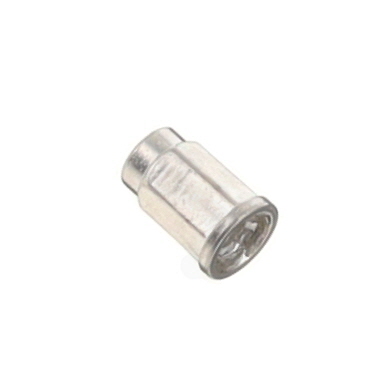

Mill-Max Manufacturing Corp. 8894-0-15-80-12-84-10-0	-55 C	125 °C	2.54 mm	0.1 in	Beryllium Copper	Tin	0.1 in	2.54 mm	0.068 in	1.73 mm	2.54 µm	100 µin	0.38 mm	0.022 in	0.015 "	0.56 mm	No Tail	0.059 in	1.5 mm	Hex Press-Fit
