2367198 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT HSG 14POS 1.00MM

Part	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Contact Type	Number of Positions	Fastening Type	Contact Termination	Color	Note	Mounting Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]

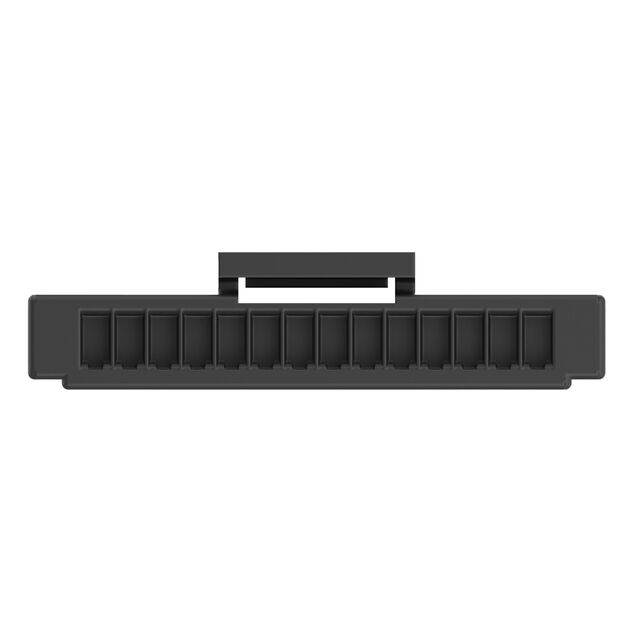

TE Connectivity Raychem Cable Protection 1-2367198-4	Receptacle	1	0.039 in	1 mm	Female Socket	14	Latch Lock	Crimp	Black	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C

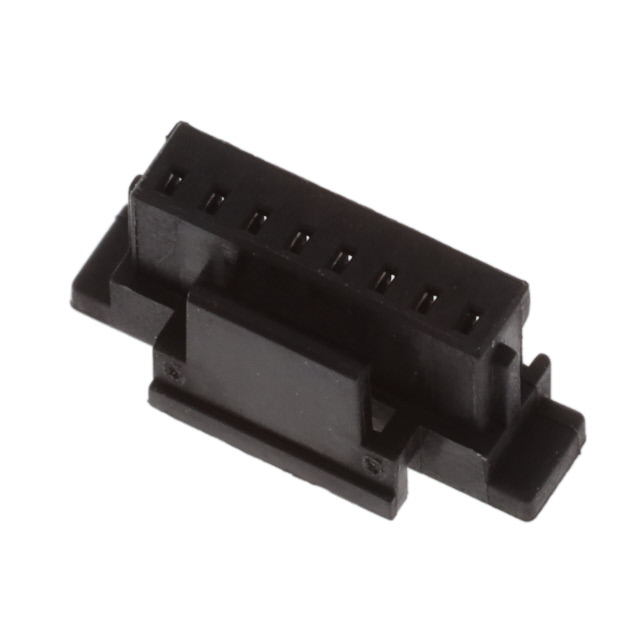

TE Connectivity Raychem Cable Protection 2367198-8	Receptacle	1	0.039 in	1 mm	Female Socket	8	Latch Lock	Crimp	Black	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 3-2367198-4	Receptacle	1	0.039 in	1 mm	Female Socket	14	Latch Lock	Crimp	Natural	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 2-2367198-5	Receptacle	1	0.039 in	1 mm	Female Socket		Latch Lock	Crimp	Natural	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C

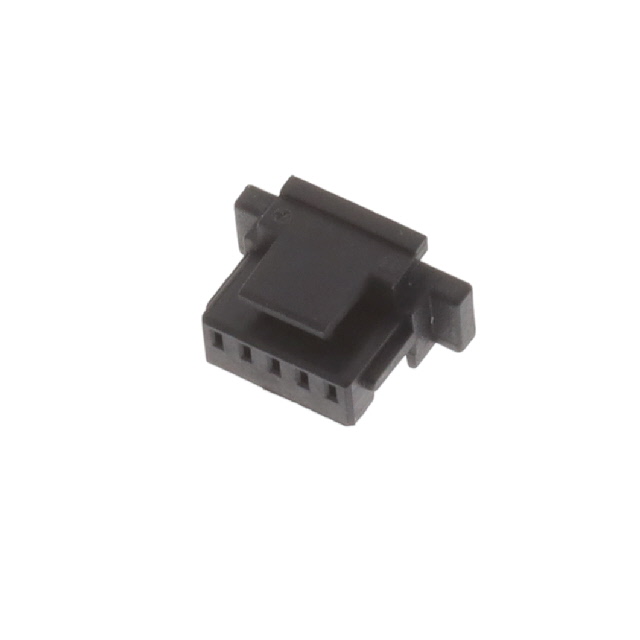

TE Connectivity Raychem Cable Protection 2367198-5	Receptacle	1	0.039 in	1 mm	Female Socket		Latch Lock	Crimp	Black	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 2367198-7	Receptacle	1	0.039 in	1 mm	Female Socket	7	Latch Lock	Crimp	Black	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 3-2367198-3	Receptacle	1	0.039 in	1 mm	Female Socket	13	Latch Lock	Crimp	Natural	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 2-2367198-6	Receptacle	1	0.039 in	1 mm	Female Socket	6	Latch Lock	Crimp	Natural	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 2-2367198-3	Receptacle	1	0.039 in	1 mm	Female Socket		Latch Lock	Crimp	Natural	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C

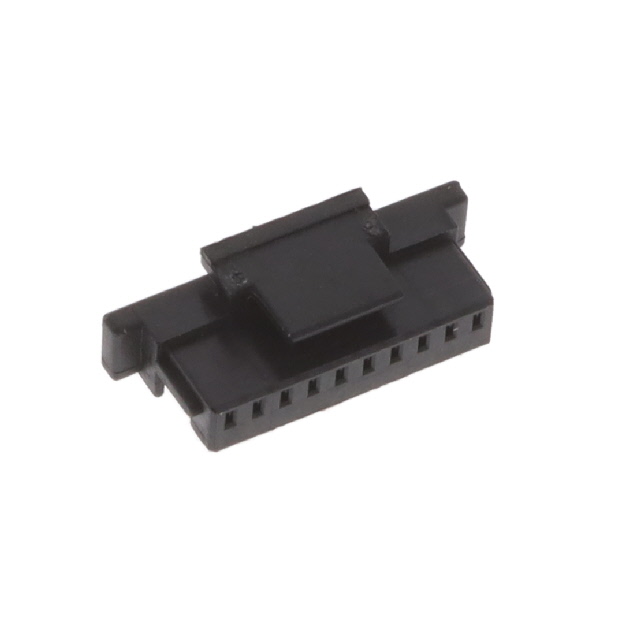

TE Connectivity Raychem Cable Protection 1-2367198-0	Receptacle	1	0.039 in	1 mm	Female Socket	10	Latch Lock	Crimp	Black	Contacts Not Included	Free Hanging (In-Line)	Plastic Halogen Free	85 °C	-40 °C
