SST2 Series

Catalog

STA-STRAP CABLE TIE, RELEASABLE, 6.7", STANDARD, HEAT STAB. NYLON 6.6, BLACK ROHS COMPLIANT: YES

Part	Wire/Cable Tie Type	Shelf Life Start	Width [x]	Width [x]	Tensile Strength	Tensile Strength	Features	Length - Approximate [x]	Mounting Type	Shelf Life	Length - Actual	Length - Actual	Length - Actual	Material	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Color	Length - Approximate	Width [y]	Width	Bundle Diameter [diameter]
Panduit Corp SST2S-M30	Locking Standard	Date of Manufacture	4.57 mm	0.18 in	22.68 kg	50 lbs	2-Piece Design Heat Stabilized	6.75 in	Free Hanging (In-Line)	48 Months	6.7 in	0.558 ft	170.08 mm	Polyamide (PA66) Nylon 6/6	1.75 in	44.45 mm	Black

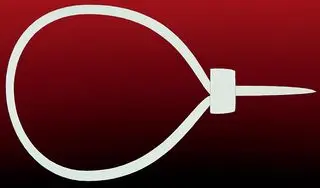

Panduit Corp SST2I-M	Locking Standard	Date of Manufacture			18.14 kg	40 lbs	2-Piece Design		Free Hanging (In-Line)	48 Months	8.1 in	0.675 ft	205.74 mm	Polyamide (PA66) Nylon 6/6		2 in	Natural	8 in	0.135 "	3.43 mm	50.8 mm
Panduit Corp SST2I-C	Locking Standard				18.14 kg	40 lbs	2-Piece Design		Free Hanging (In-Line)		8.1 in	0.675 ft	205.74 mm	Polyamide (PA66) Nylon 6/6		2 in	Natural	8 in	0.135 "	3.43 mm	50.8 mm
Panduit Corp SST2H-D	Locking Standard	Date of Manufacture		0.3 in	54.43 kg	120 lbs	2-Piece Design		Free Hanging (In-Line)	48 Months	8 in	0.667 ft	203.2 mm	Polyamide (PA66) Nylon 6/6		2 in	Natural	8 in		7.62 mm	50.8 mm
Panduit Corp SST2H-D0	Locking Standard	Date of Manufacture		0.3 in	54.43 kg	120 lbs	2-Piece Design Weather Resistant		Free Hanging (In-Line)	48 Months	8 in	0.667 ft	203.2 mm	Polyamide (PA66) Nylon 6/6		2 in	Black	8 in		7.62 mm	50.8 mm

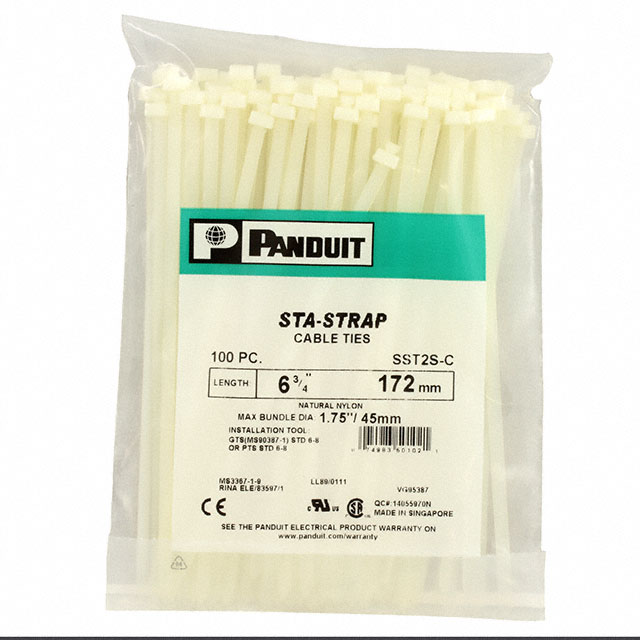

Panduit Corp SST2S-C	Locking Standard	Date of Manufacture	4.57 mm	0.18 in	22.68 kg	50 lbs	2-Piece Design	6.75 in	Free Hanging (In-Line)	48 Months	6.7 in	0.558 ft	170.08 mm	Polyamide (PA66) Nylon 6/6	1.75 in	44.45 mm	Natural
Panduit Corp SST2I-M0	Locking Standard	Date of Manufacture			18.14 kg	40 lbs	2-Piece Design Weather Resistant		Free Hanging (In-Line)	48 Months	8.1 in	0.675 ft	205.74 mm	Polyamide (PA66) Nylon 6/6		2 in	Black	8 in	0.135 "	3.43 mm	50.8 mm
Panduit Corp SST2I-M20	Locking Standard	Date of Manufacture			18.14 kg	40 lbs	2-Piece Design		Free Hanging (In-Line)	48 Months	8.1 in	0.675 ft	205.74 mm	Polyamide (PA66) Nylon 6/6		2 in	Black	8 in	0.135 "	3.43 mm	50.8 mm

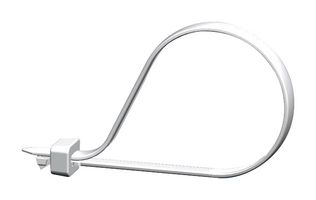

Panduit Corp SST2S-M	Locking Standard	Date of Manufacture	4.57 mm	0.18 in	22.68 kg	50 lbs	2-Piece Design	6.75 in	Free Hanging (In-Line)	48 Months	6.7 in	0.558 ft	170.08 mm	Polyamide (PA66) Nylon 6/6	1.75 in	44.45 mm	Natural
Panduit Corp SST2S-C0	Locking Standard	Date of Manufacture	4.57 mm	0.18 in	22.68 kg	50 lbs	2-Piece Design Weather Resistant	6.75 in	Free Hanging (In-Line)	48 Months	6.7 in	0.558 ft	170.08 mm	Polyamide (PA66) Nylon 6/6	1.75 in	44.45 mm	Black
