KGC2ANB1 Series
Manufacturer: ZF Electronics
Beta
⌘K

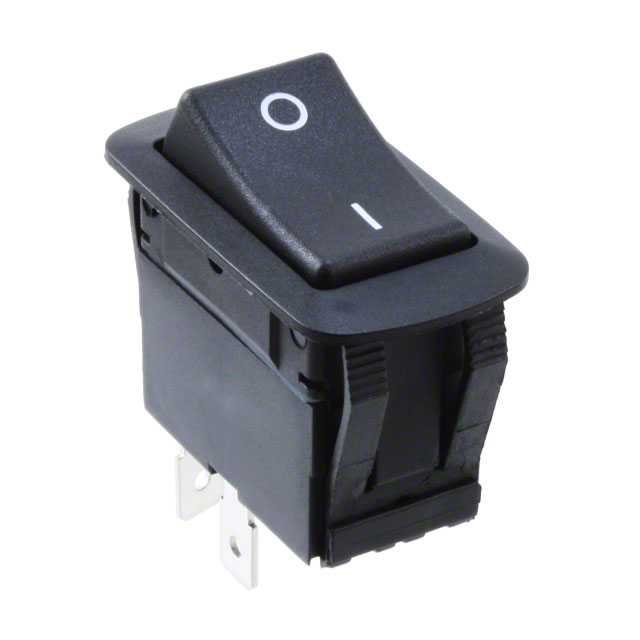

SWITCH ROCKER SPST 20A 125V
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Type | Mounting Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Current Rating (Amps) | Voltage Rating - AC | Termination Style | Color - Actuator/Cap | Voltage Rating - DC | Actuator Marking | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 6000 Cycles | 100000 Cycles | 21.2 mm | 36.6 mm | Concave (Curved) | Panel Mount Snap-In | On-Off | 85 °C | -20 ░C | IP56 - Dust Protected Water Resistant | 20 A 21 A | 125 V | Quick Connect - 0.250" (6.3mm) | Black | 14 V | O - | SPST |
