5595301 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL YLW DIFF SNAP-IN STR

Part	Viewing Angle	Lens Color	Lens Transparency	Panel Cutout Shape	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Wavelength - Peak	Lens Style	Type	Lamp Color	Termination Style	Millicandela Rating	Lens Size	Lens Size	Current	Voltage	Termination Style	Termination Style

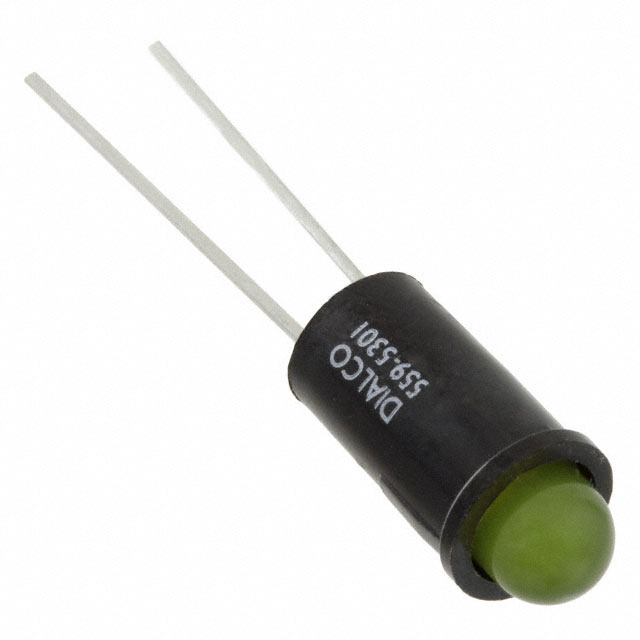

DIALIGHT 5595301001F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow	PC Pin	34 mcd	5 mm	T-1 3/4	25 mA	2.2 V
DIALIGHT 5595301023F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow		34 mcd	5 mm	T-1 3/4	25 mA	2.2 V

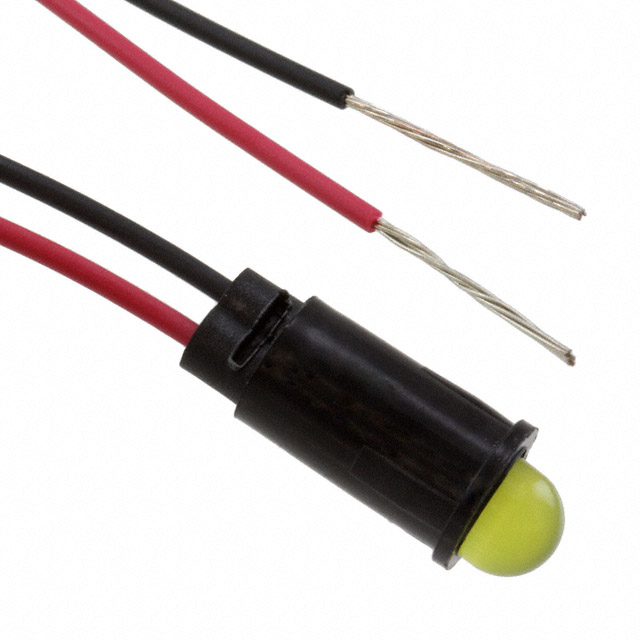

DIALIGHT 5595301027F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow	Wire Leads	34 mcd	5 mm	T-1 3/4	25 mA	2.2 V	14 in	355.6 mm

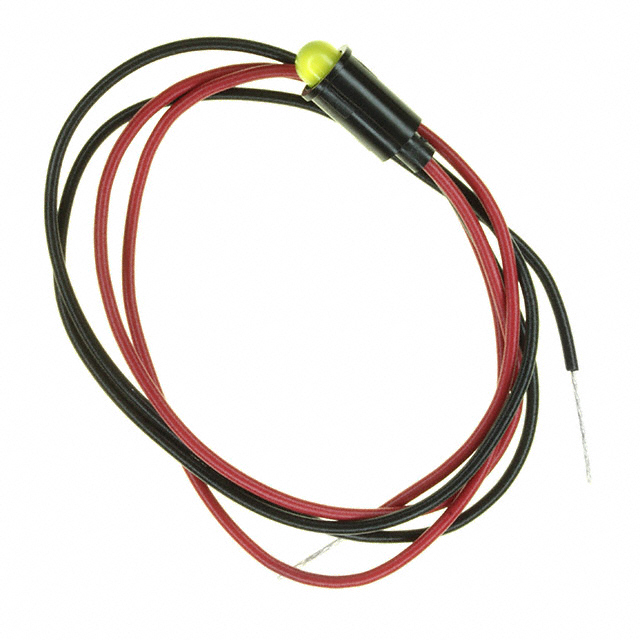

DIALIGHT 5595301007F	50 °		Diffused	Round	6.35 mm	0.25 in	583 nm	Round with Domed Top	LED	Yellow	Wire Leads	34 mcd	5 mm	T-1 3/4	25 mA	2.2 V	14 in	355.6 mm
DIALIGHT 5595301003F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow		34 mcd	5 mm	T-1 3/4	25 mA	2.2 V
DIALIGHT 5595301802F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow		34 mcd	5 mm	T-1 3/4	25 mA	2.2 V
DIALIGHT 5595301808F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow		34 mcd	5 mm	T-1 3/4	25 mA	2.2 V
DIALIGHT 5595301017F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow	Wire Leads	34 mcd	5 mm	T-1 3/4	25 mA	2.2 V	14 in	355.6 mm
DIALIGHT 5595301809F	50 °	Yellow	Diffused	Round	6.35 mm	0.25 in	585 nm	Round with Domed Top	LED	Yellow		34 mcd	5 mm	T-1 3/4	25 mA	2.2 V
