5680704 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 3MM QUAD LEVEL

Part	Lens Size	Lens Size	Lens Type	Millicandela Rating	Voltage Rating	Mounting Type	Current [custom]	Current [custom]	Wavelength - Peak	Viewing Angle	Configuration	Color	Lens Style	Viewing Angle	Current	Millicandela Rating [custom]	Millicandela Rating [custom]

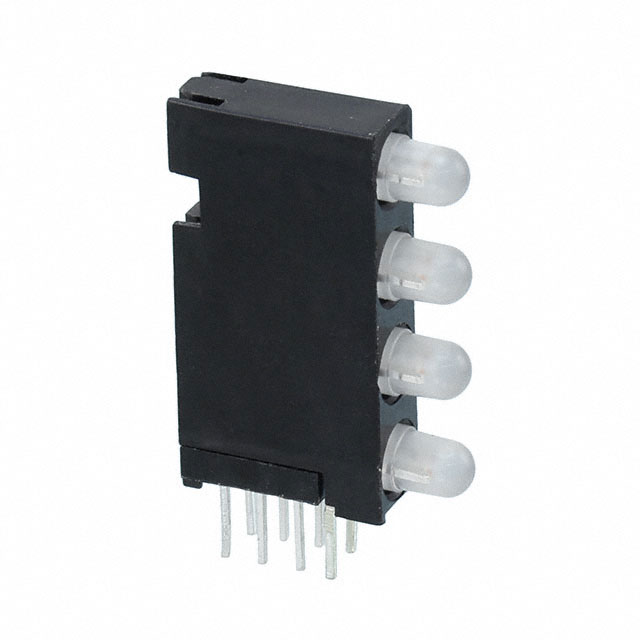

DIALIGHT 5680704445F

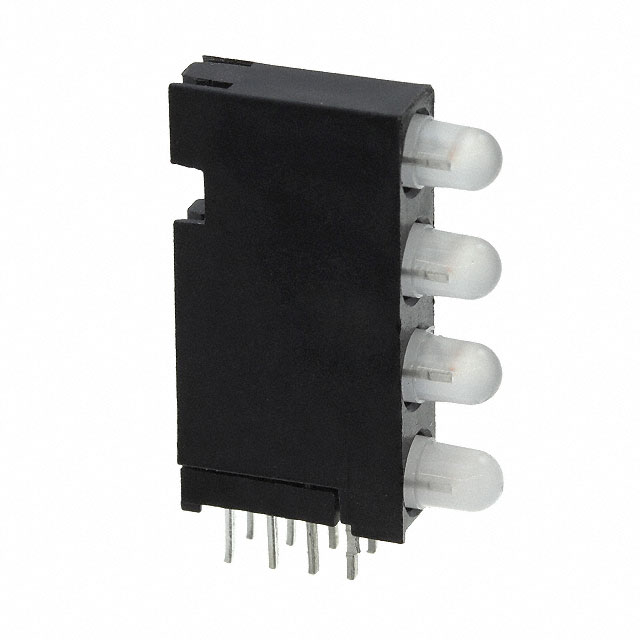

DIALIGHT 5680704836F
DIALIGHT 5680704811F	3 mm	T-1	Diffused	4.3 mcd 6.3 mcd	2.1 V	Through Hole Right Angle	30 mA	20 mA	565 nm 585 nm	80 °	4 High	Green Yellow	Round with Domed Top
DIALIGHT 5680704805F	3 mm	T-1		4.3 mcd 6.3 mcd 10 mcd 12.6 mcd	2.1 V 2.1 V	Through Hole Right Angle	30 mA	20 mA	565 nm 585 nm		4 High	Green Green (x 2) Yellow (x 1)	Round with Domed Top	60° Green 60° Yellow 80° Green-Yellow
DIALIGHT 5680704845F
DIALIGHT 5680704847F	3 mm	T-1	Diffused		2.1 V 2.1 V	Through Hole Right Angle			565 nm 585 nm	80 °	4 High	Green Yellow	Round with Domed Top		10mA Green 10mA Yellow	12.2 mcd	5.7 mcd
DIALIGHT 5680704849F
DIALIGHT 5680704804F	3 mm	T-1		4.3 mcd 6.3 mcd 10 mcd 12.6 mcd	2.1 V 2.1 V	Through Hole Right Angle	30 mA	20 mA	565 nm 585 nm		4 High	Green Green (x 1) Yellow (x 1) Yellow (x 2)	Round with Domed Top	60° Green 60° Yellow 80° Green-Yellow
DIALIGHT 5680704816F	3 mm	T-1	Diffused	4.3 mcd 6.3 mcd	2.1 V	Through Hole Right Angle	30 mA	20 mA	565 nm 585 nm	80 °	4 High	Green Yellow	Round with Domed Top

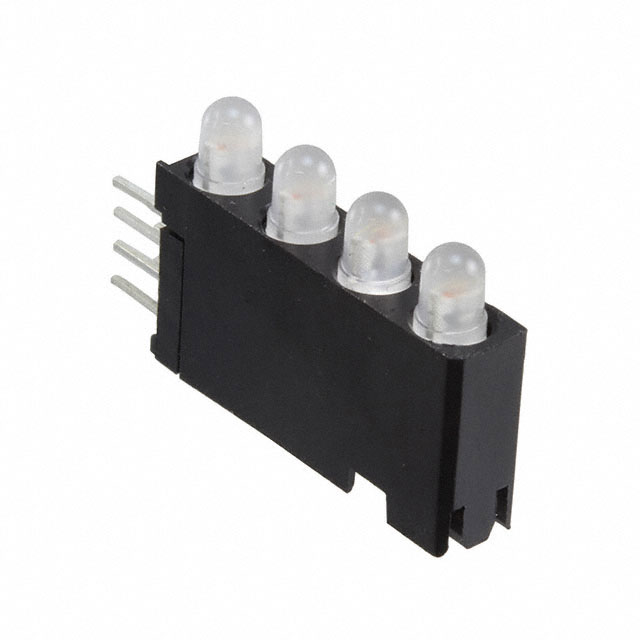

DIALIGHT 5680704838F	3 mm	T-1			2.6 V					80 °	4 High	Green-Yellow (x 3) Red-Yellow	Round with Domed Top
