HCPL-6530 Series
Manufacturer: Broadcom Limited
Beta
⌘K

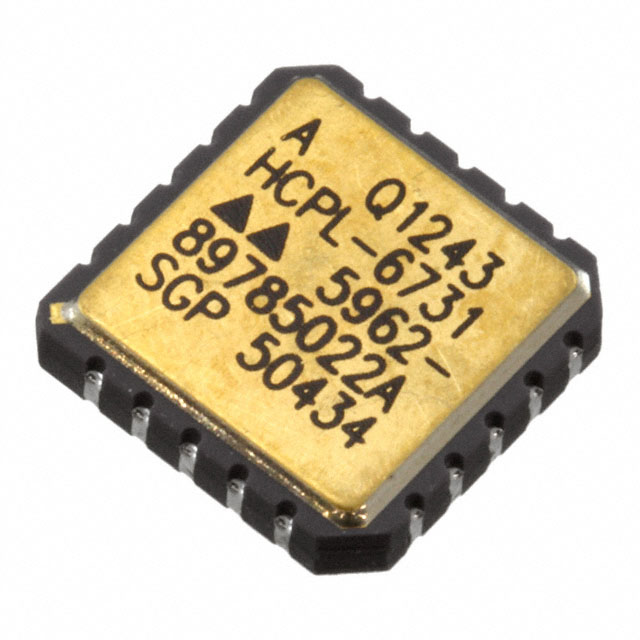

OPTOISO 1.5KV TRANS W/BASE CLCC
| Part | Current - Output / Channel | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Input Type | Turn On / Turn Off Time (Typ) | Output Type | Current Transfer Ratio (Min) [Min] | Mounting Type | Current - DC Forward (If) (Max) [Max] | Package / Case | Voltage - Forward (Vf) (Typ) | Voltage - Output (Max) [Max] | Supplier Device Package | Number of Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 8 mA | -55 C | 125 °C | 1.5 kV | DC | 1 µs 400 ns | Transistor with Base | 9 % | Surface Mount | 20 mA | 20-CLCC | 1.55 V | 20 V | 20-LCCC (8.89x8.89) | 2 |
