FFB0924 Series

Catalog

DC FAN BALL BEARING 24V 0.5A 12W 4800RPM 110.18CFM 55DB FLANGE MOUNT

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Power (Watts)	Air Flow	Air Flow	Bearing Type	Voltage - Rated	RPM	Static Pressure	Static Pressure	Approval Agency	Width [y]	Weight	Weight	Size / Dimension [y]	Size / Dimension [x]	Termination	Ingress Protection	Fan Type	Features
Delta Electronics FFB0924EHE-T500	Plastic	Plastic	70000 Hrs	27.6 VDC	14	0.5 A	-10 °C	60 °C	55 dB(A)	12 W	110.2 CFM	3.09 m³/min	Ball	24 VDC	4800 RPM	165.6 Pa	0.665 in H2O	CE CSA UL VDE	38 mm	0.437 lb	198 g	92 mm	92 mm	2 Wire Leads	IP55 - Dust Protected Water Resistant	Tubeaxial
Delta Electronics FFB0924EHE	Plastic	Plastic	70000 Hrs	27.6 VDC	14	0.5 A	-10 °C	60 °C	55 dB(A)	12 W	110.2 CFM	3.09 m³/min	Ball	24 VDC	4800 RPM	165.6 Pa	0.665 in H2O	CE CSA UL VDE	38 mm	0.437 lb	198 g	92 mm	92 mm	2 Wire Leads		Tubeaxial
Delta Electronics FFB0924VH-F00	Plastic	Plastic	70000 Hrs	27.6 VDC	14	0.31 A	-10 °C	60 °C	48.2 dB(A)	7.44 W	82 CFM	2.3 m³/min	Ball	24 VDC	3700 RPM	79.5 Pa	0.319 in H2O	CE CSA UL VDE	25.4 mm	0.286 lb	129.73 g	92 mm	92 mm	3 Wire Leads		Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)

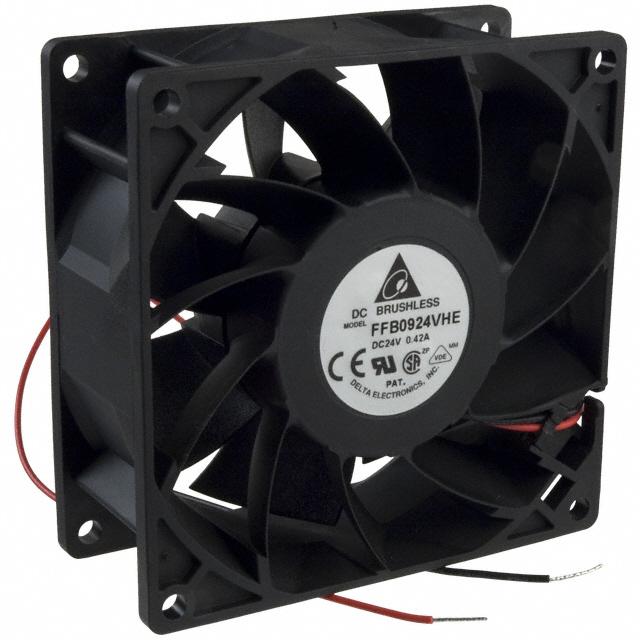

Delta Electronics FFB0924VHE	Plastic	Plastic	70000 Hrs	27.6 VDC	14	0.28 A	-10 °C	70 °C	47.5 dB	6.72 W	85.5 CFM	2.39 m³/min	Ball	24 VDC	3800 RPM	101.1 Pa	0.406 in H2O	CE CSA UL VDE	38 mm	0.437 lb	198 g	92 mm	92 mm	2 Wire Leads		Tubeaxial
Delta Electronics FFB0924EHE-SP20	Plastic	Plastic	70000 Hrs	26.4 VDC	21.6 VDC	0.5 A	-10 °C	70 °C	55 dB(A)	12 W	110.2 CFM	3.09 m³/min	Ball	24 VDC	4800 RPM	165.6 Pa	0.665 in H2O	CE CSA UL VDE	38 mm	0.437 lb	198 g	92 mm	92 mm	3 Wire Leads		Tubeaxial	Locked Rotor Protection PWM Control

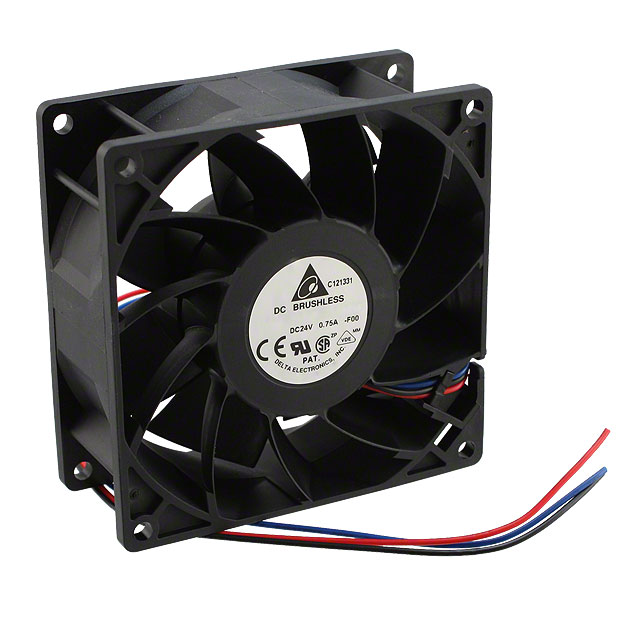

Delta Electronics FFB0924EHE-F00	Plastic	Plastic	70000 Hrs	27.6 VDC	14	0.5 A	-10 °C	60 °C	55 dB(A)	12 W	110.2 CFM	3.09 m³/min	Ball	24 VDC	4800 RPM	165.6 Pa	0.665 in H2O	CE CSA UL VDE	38 mm	0.437 lb	198 g	92 mm	92 mm	3 Wire Leads		Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)

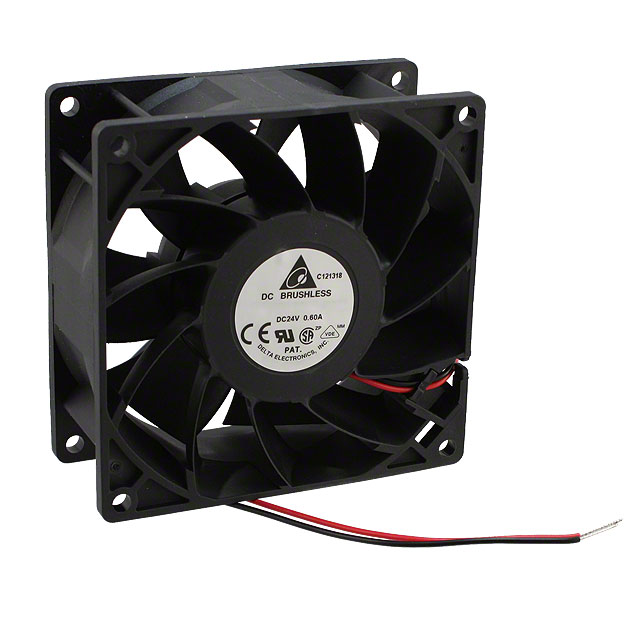

Delta Electronics FFB0924SHE	Plastic	Plastic	70000 Hrs	27.6 VDC	14	400 mA	-10 °C	70 °C	52.5 dB(A)	9.6 W	100.3 CFM	2.81 m³/min	Ball	24 VDC	4400 RPM	142.5 Pa	0.572 in H2O	CE CSA UL VDE	38 mm	0.437 lb	198 g	92 mm	92 mm	2 Wire Leads		Tubeaxial
Delta Electronics FFB0924VHE-T50R	Plastic	Plastic	70000 Hrs	27.6 VDC	14	0.28 A	-10 °C	70 °C	47.5 dB	6.72 W	85.5 CFM	2.39 m³/min	Ball	24 VDC	3800 RPM	101.1 Pa	0.406 in H2O	CE cURus VDE	38 mm	0.437 lb	198 g	92 mm	92 mm	3 Wire Leads	IP55 - Dust Protected Water Resistant	Tubeaxial	Locked Rotor Sensor
