7408WS Series
Manufacturer: Belden Inc.
Beta
⌘K

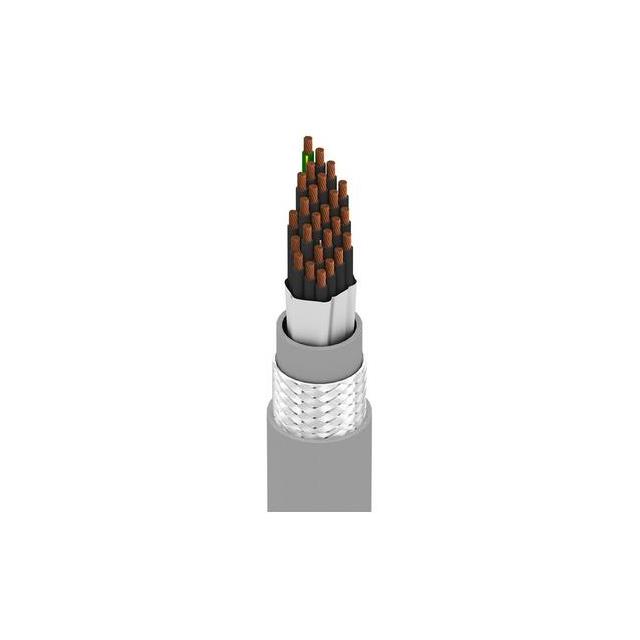

CABLE 25COND 20AWG CHROME
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Wire Gauge | Conductor Material | Jacket Color | Number of Conductors [custom] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 85 % | 0.053 " | 1.346 mm | UL Style 20327 | 20 AWG | Copper Bare | Chrome | 25 | Braid | 0.595 in | 15.11 mm | 300 VDC | 10 | 30 AWG | Thermoplastic Elastomer (TPE) | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ||
 Belden Inc. | Copper Tinned | 85 % | 0.053 " | 1.346 mm | UL Style 20327 | 20 AWG | Copper Bare | Chrome | 25 | Braid | 0.595 in | 15.11 mm | 300 VDC | 10 | 30 AWG | Thermoplastic Elastomer (TPE) | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 76.2 m | 250 ft |
