Hdp0 Series Series

Detector Switches Switch HDP001 SMT R/A Detect-Right Micro Mini Side Actuated Surface Mount Detect Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Detector Switches Switch HDP001 SMT R/A Detect-Right Micro Mini Side Actuated Surface Mount Detect Switch

Part	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Mounting Type	Circuit	Current Rating (Amps)	Pretravel	Pretravel	Switch Function	Operating Position	Operating Position	Features	Mechanical Life	Voltage Rating - DC	Actuator Type

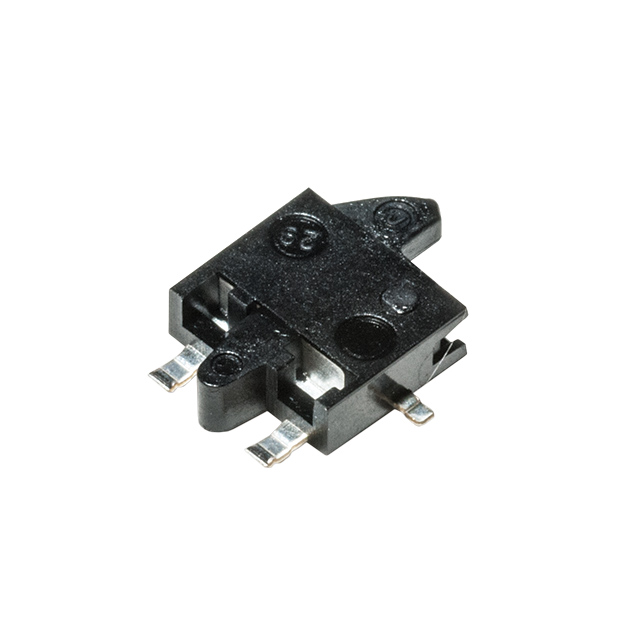

Littelfuse/Commercial Vehicle Products HDP001R	100000 Cycles	-20 C	70 °C	Gull Wing	Surface Mount Right Angle	SPST-NO	1 mA	0.006 in	0.15 mm	Off-Mom	0.117 in	2.96 mm	Board Guide	100000 Cycles	5 V	Angled Toggle (Detector)

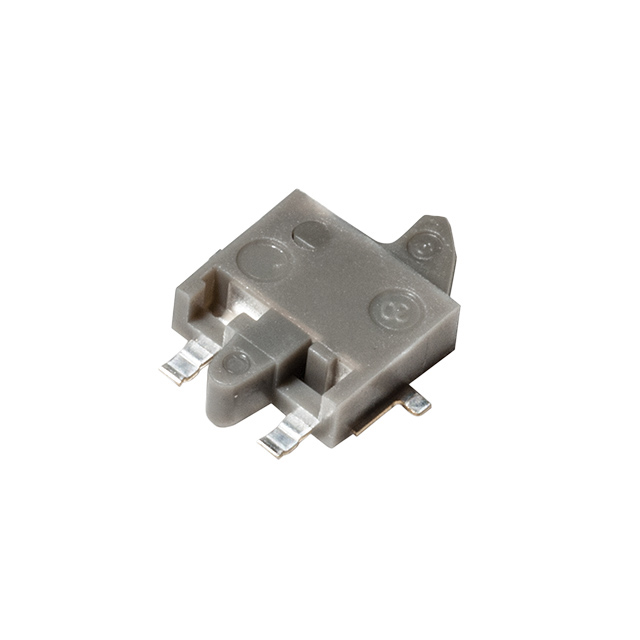

Littelfuse/Commercial Vehicle Products HDP001L	100000 Cycles	-20 C	70 °C	Gull Wing	Surface Mount Right Angle	SPST-NO	1 mA	0.006 in	0.15 mm	Off-Mom	0.117 in	2.96 mm	Board Guide	100000 Cycles	5 V	Angled Toggle (Detector)

Catalog

Detector Switches Switch HDP001 SMT R/A Detect-Right Micro Mini Side Actuated Surface Mount Detect Switch

Key Features

• Low profile

• Right and left options available

• Side actuation

Description

C&K’s HDP series of micro mini side actuated surface mount detect switches are engineered to give designers their option for a right or left side switch, while retaining a low profile. HDP switches are used most often in devices for the medical device or consumer electronics industries – and are recognized for giving designers a long lifecycle switch with a soft actuation force.
