KX14-100 Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN RCPT 100POS SMD GOLD
| Part | Features | Height Above Board [z] | Height Above Board [z] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Finish | Mounting Type | Number of Rows [custom] | Connector Type | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

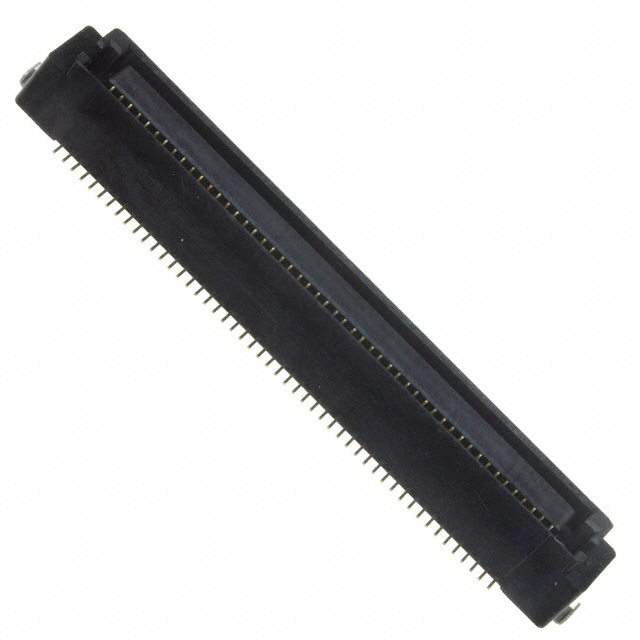

 JAE Electronics | Board Guide Solder Retention | 6.55 mm | 0.258 in | 100 | 0.1 Ám | 4 Áin | 0.8 mm | 0.031 in | Gold | Surface Mount | 2 | Receptacle Outer Shroud Contacts | 7 mm 8 mm 9 mm |

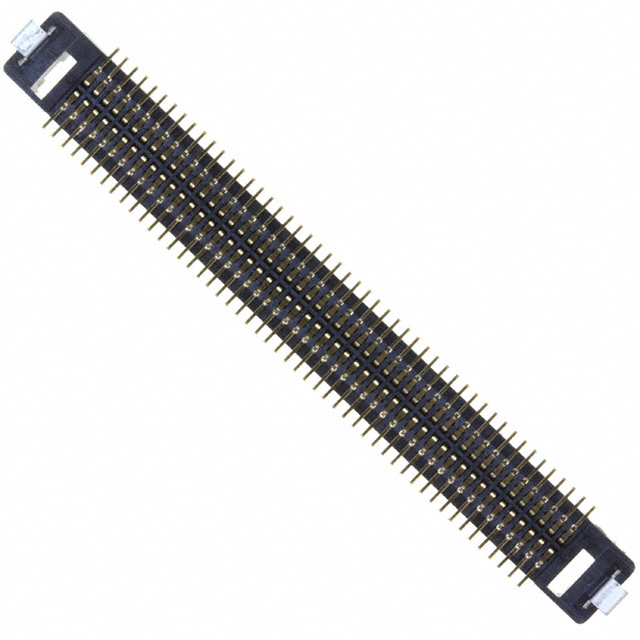

 JAE Electronics | Board Guide Solder Retention | 3.55 mm | 0.14 in | 100 | 0.1 Ám | 4 Áin | 0.8 mm | 0.031 in | Gold | Surface Mount | 2 | Receptacle Outer Shroud Contacts | 4 mm 5 mm 6 mm |
