282822 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 9POS VERT 5MM
| Part | Termination Style | Insulation Height | Insulation Height | Header Orientation | Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level | Number of Levels | Contact Mating Finish | Voltage - UL | Number of Positions | Contact Tail Length | Contact Tail Length | Material Flammability Rating | Mounting Type | Contact Material | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 9 | 1 | Tin | 300 V | 9 | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in |

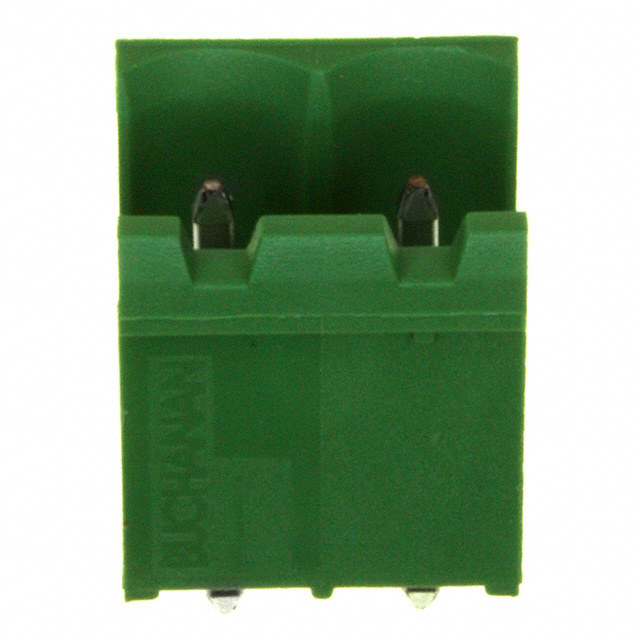

 TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 2 | 1 | Tin | 300 V | 2 | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in |
TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 15 | 1 | Tin | 300 V | 15 | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in |
TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 7 | 1 | Tin | 300 V | 7 | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in |
 TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 3 | 1 | Tin | 300 V | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in | |
TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 19 | 1 | Tin | 300 V | 19 | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in |
TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 1 | Tin | 300 V | 24 | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in | |
TE Connectivity Raychem Cable Protection | Solder | 0.472 in | 12 mm | Vertical | Header Male Pins Shrouded (2 Side) | Green | -40 °C | 110 °C | 18 | 1 | Tin | 300 V | 18 | 3.5 mm | 0.138 in | UL94 V-0 | Through Hole | Copper Alloy | 5 mm | 0.197 in |
