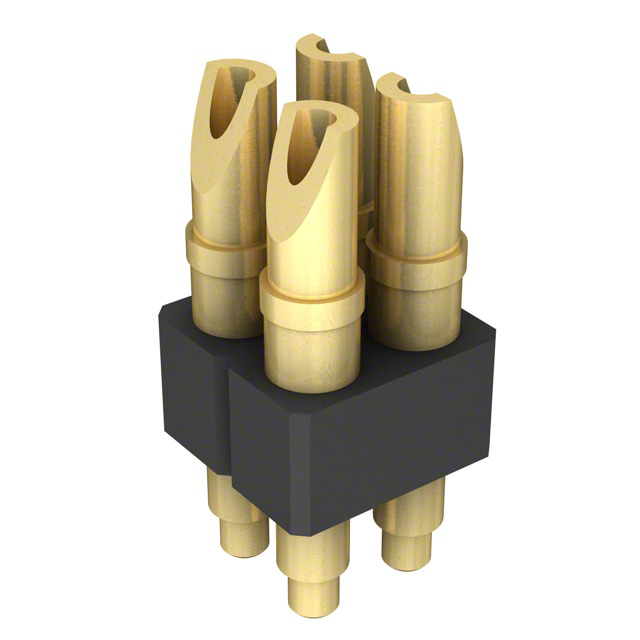

826-22 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN SPRING PISTON 24POS SLD PCB

Part	Connector Type	Material	Mounting Type	Contact Finish	Row Spacing	Row Spacing	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Contacts [custom]	Number of Rows [custom]	Number of Contacts
Mill-Max Manufacturing Corp. 826-22-024-00-001000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm	24	2

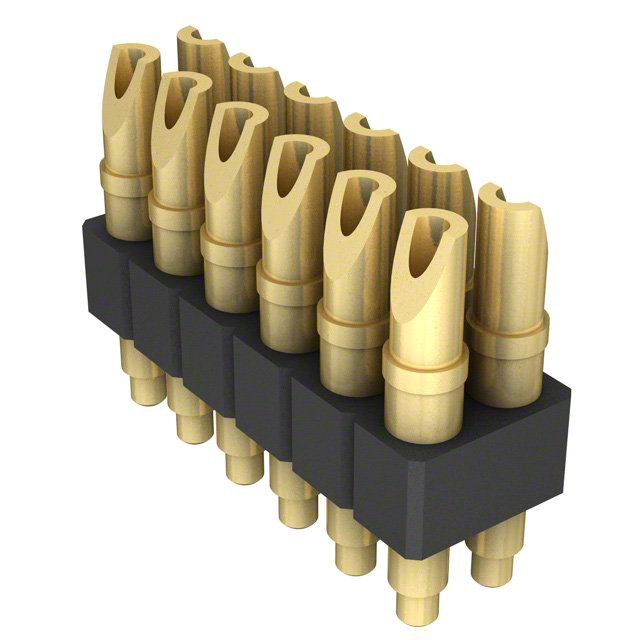

Mill-Max Manufacturing Corp. 826-22-012-00-005000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm	12	2
Mill-Max Manufacturing Corp. 826-22-002-00-005000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm				2	2

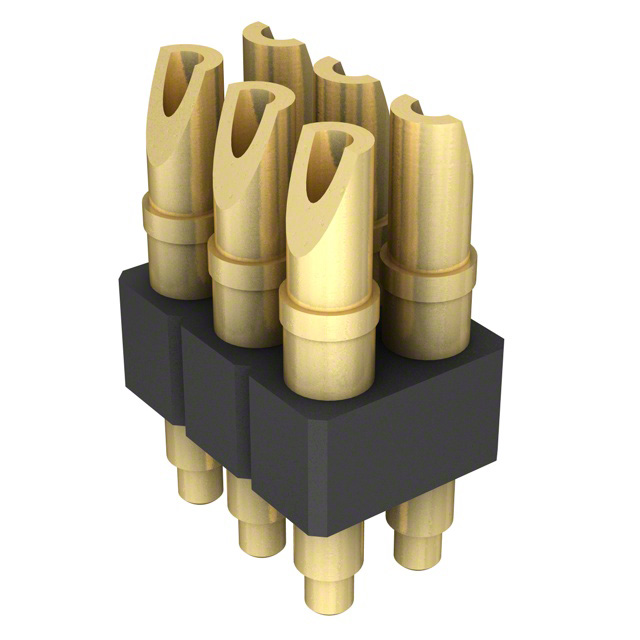

Mill-Max Manufacturing Corp. 826-22-006-00-005000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm		2	6

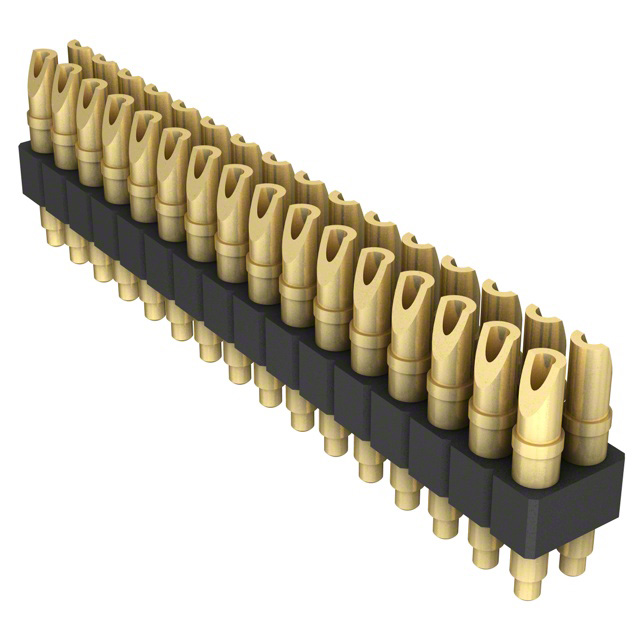

Mill-Max Manufacturing Corp. 826-22-032-00-001000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm	32	2

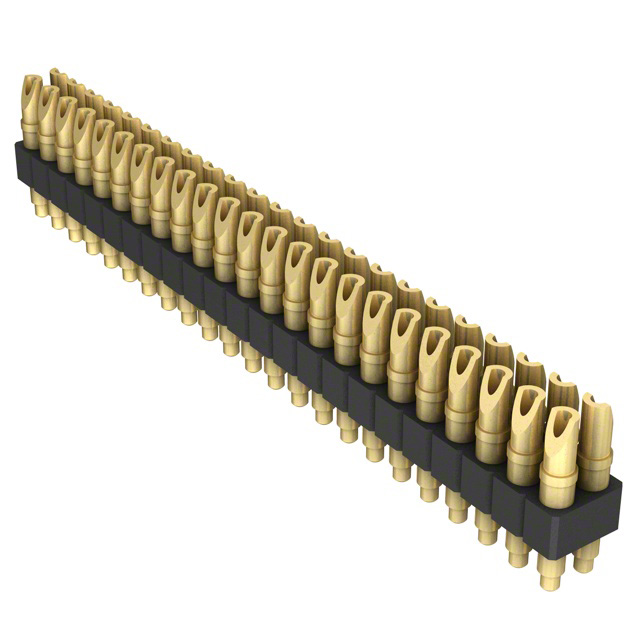

Mill-Max Manufacturing Corp. 826-22-046-00-001000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm		2	46
Mill-Max Manufacturing Corp. 826-22-004-00-005000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm		2	4

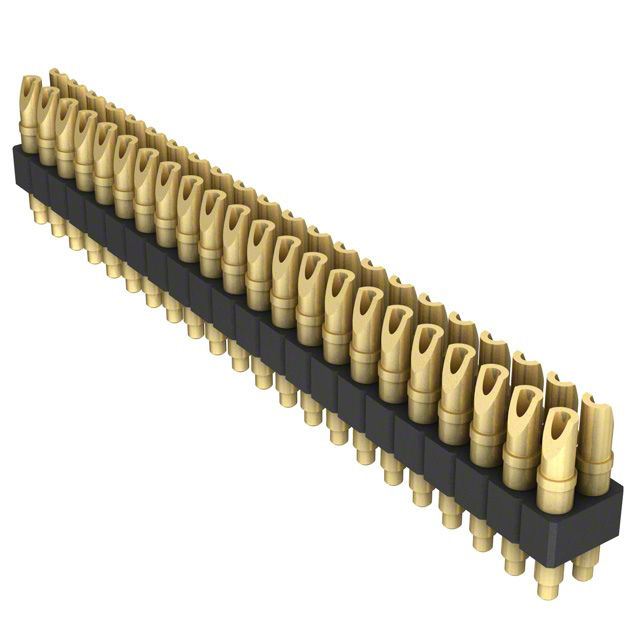

Mill-Max Manufacturing Corp. 826-22-044-00-001000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm		2	44

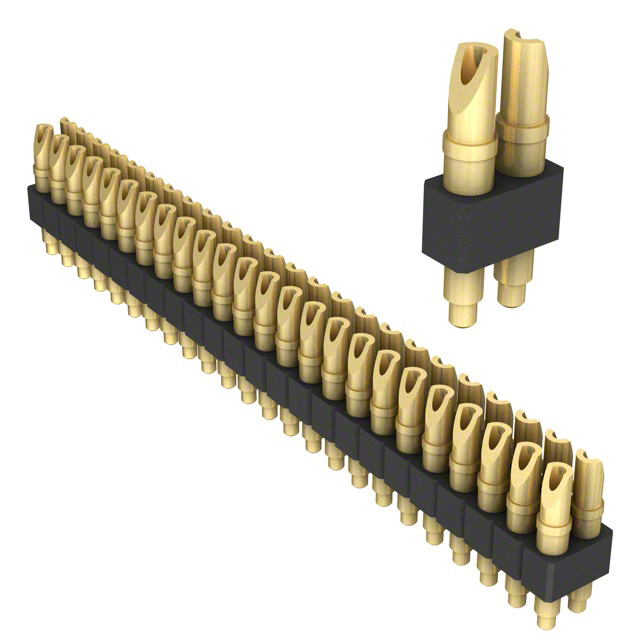

Mill-Max Manufacturing Corp. 826-22-048-00-001000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm		2	48

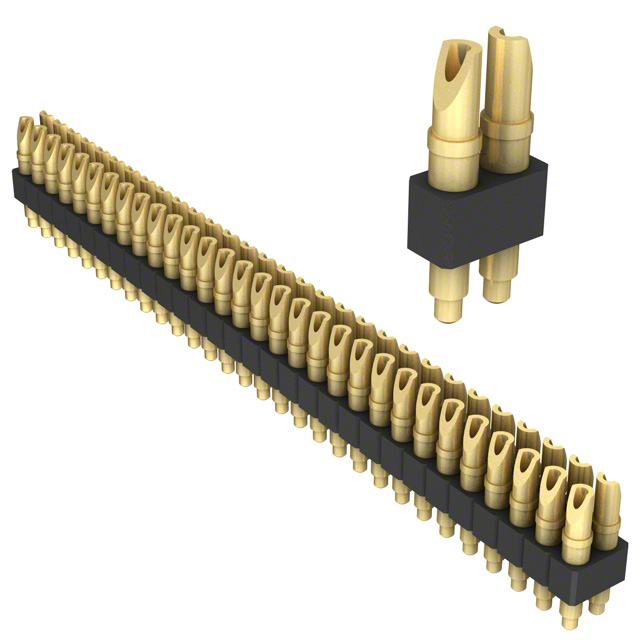

Mill-Max Manufacturing Corp. 826-22-060-00-001000	Piston	Beryllium Copper	Solder Cup Through Hole	Gold	2.54 mm	0.1 "	20 µin	0.51 µm	0.1 "	2.54 mm		2	60
