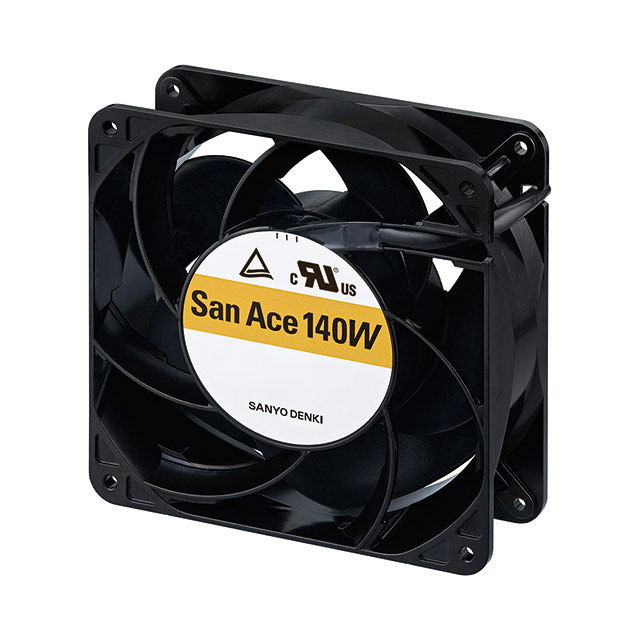

9WL1412 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 10.2V TO 13.8V 130CFM 46DB 140 X 140 X 38MM LOW NOISE/HIGH AIR FLOW/HIGH ENERGY EFFICIENCY/HIGH STATIC PRESSURE

Part	Lifetime @ Temp.	Material - Blade	Material - Frame	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Ingress Protection	Fan Type	Weight [custom]	Weight [custom]	Noise	Features	Power (Watts)	Voltage - Rated	Bearing Type	Approval Agency	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Termination	RPM	Size / Dimension [x]	Size / Dimension [y]	Width [y]
Sanyo Denki America Inc. 9WL1412P1M001	100000 Hrs	Plastic	Aluminum	600 mA	10.2 VDC	13.8 VDC	130 CFM	3.64 m³/min	IP68 - Dust Tight Waterproof	Tubeaxial	750 g	1.653 lb	46 dB(A)	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7.2 W	12 VDC	Ball	cURus TUV	0.68 in H2O	169.4 Pa	-20 ░C	70 °C	4 Wire Leads	3300 RPM	140 mm	140 mm	38 mm
Sanyo Denki America Inc. 9WL1412P1A001	100000 Hrs	Plastic	Aluminum	3.72 A	10.2 VDC	13.8 VDC	282 CFM	7.9 m³/min	IP68 - Dust Tight Waterproof	Tubeaxial	750 g	1.653 lb	68 dB	Locked Rotor Protection PWM Control Speed Sensor (Tach)	44.64 W	12 VDC	Ball	cURus TUV	2.07 in H2O	515.6 Pa	-20 ░C	70 °C	4 Wire Leads	6900 RPM	140 mm	140 mm	38 mm
Sanyo Denki America Inc. 9WL1412P1H001	100000 Hrs	Plastic	Aluminum	1.7 A	10.2 VDC	13.8 VDC	212 CFM	5.94 m³/min	IP68 - Dust Tight Waterproof	Tubeaxial	750 g	1.653 lb	62 dB(A)	Locked Rotor Protection PWM Control Speed Sensor (Tach)	20.4 W	12 VDC	Ball	cURus TUV	1.2 in H2O	298.9 Pa	-20 ░C	70 °C	4 Wire Leads	5200 RPM	140 mm	140 mm	38 mm
