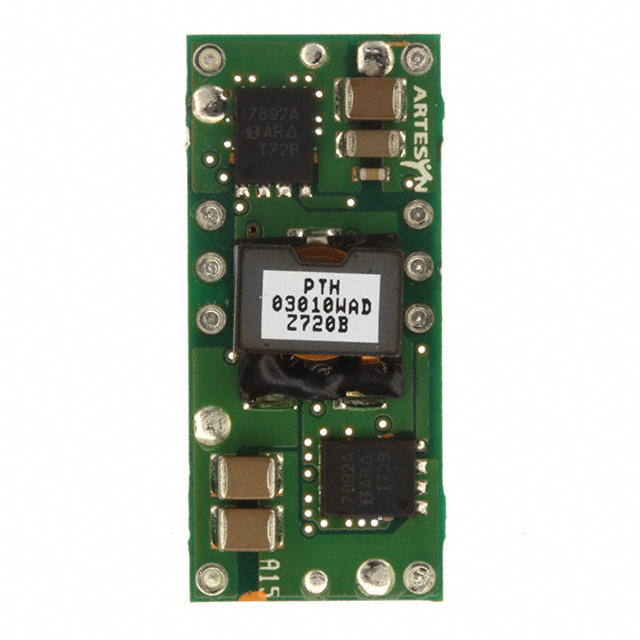

PTH03010 Series
Manufacturer: ARTESYN / Advanced Energy
Beta
⌘K
CONV DC/DC 3.3VIN ADJOUT 15A
| Part | Package / Case | Voltage - Input (Min) [Min] | Efficiency | Number of Outputs | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Current - Output (Max) [Max] | Type | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARTESYN / Advanced Energy | 10-DIP Module | 2.95 V | 93 % | 1 | 0.8 V | 2.5 V | Through Hole | 85 °C | -40 C | Remote On/Off SCP UVLO | ITE (Commercial) | 8.9 mm | 0.62 in | 1.37 in | 0.35 in | 34.8 mm | 15.7 mm | 15 A | Non-Isolated PoL Module | 3.65 V |
