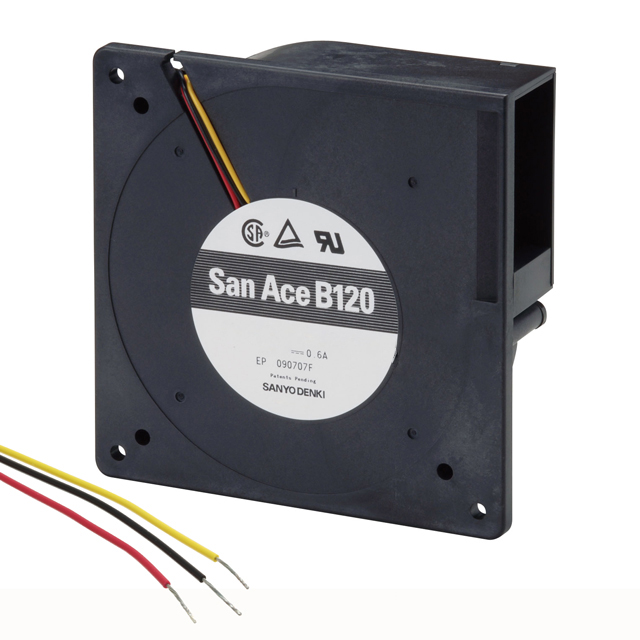

109BF24 Series

Blowers & Centrifugal Fans DC Blower, 120x120x32mm, 24VDC, Tachometer

Manufacturer: Sanyo Denki America Inc.

Catalog

Blowers & Centrifugal Fans DC Blower, 120x120x32mm, 24VDC, Tachometer

Catalog

Blowers & Centrifugal Fans DC Blower, 120x120x32mm, 24VDC, Tachometer

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage - Rated	Air Flow	Air Flow	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Static Pressure	Static Pressure	Power (Watts)	Features	Termination	Width [y]	RPM	Approval Agency	Noise	Bearing Type	Fan Type	Current Rating (Amps)
Sanyo Denki America Inc. 109BF24MC2	Plastic	40000 Hrs	Plastic	24 VDC	0.602 m³/min	21.5 CFM	0.604 lb	273.97 g	60 °C	60 °C	-4 °F	-20 ░C	Square/Rounded	120 mm	120 mm	110 Pa	0.441 in H2O	3.84 W	Speed Sensor (Tach)	3 Wire Leads	32 mm	1900 RPM	CSA TUV UL	44 dB(A)	Ball	Blower
Sanyo Denki America Inc. 109BF24HC2	Plastic	40000 Hrs	Plastic	24 VDC	0.77 m³/min	27.5 CFM	0.604 lb	273.97 g	60 °C	60 °C	-4 °F	-20 ░C	Square/Rounded	120 mm	120 mm	175.4 Pa	0.704 in H2O	7.2 W	Speed Sensor (Tach)	3 Wire Leads	32 mm	2400 RPM	CSA TUV UL	52 dB	Ball	Blower	0.3 A
Sanyo Denki America Inc. 109BF24HD2	Plastic	40000 Hrs	Plastic	24 VDC	0.77 m³/min	27.5 CFM	0.604 lb	273.97 g	60 °C	60 °C	-4 °F	-20 ░C	Square/Rounded	120 mm	120 mm	175.4 Pa	0.704 in H2O	7.2 W	Locked Rotor Sensor	3 Wire Leads	32 mm	2400 RPM	CSA TUV UL	52 dB	Ball	Blower	0.3 A
Sanyo Denki America Inc. 109BF24MA2	Plastic	40000 Hrs	Plastic	24 VDC	0.602 m³/min	21.5 CFM	0.604 lb	273.97 g	60 °C	60 °C	-4 °F	-20 ░C	Square/Rounded	120 mm	120 mm	110 Pa	0.441 in H2O	3.84 W		2 Wire Leads	32 mm	1900 RPM	CSA TUV UL	44 dB(A)	Ball	Blower
