902-0098 Series
Manufacturer: ROBOTIS
Beta
⌘K

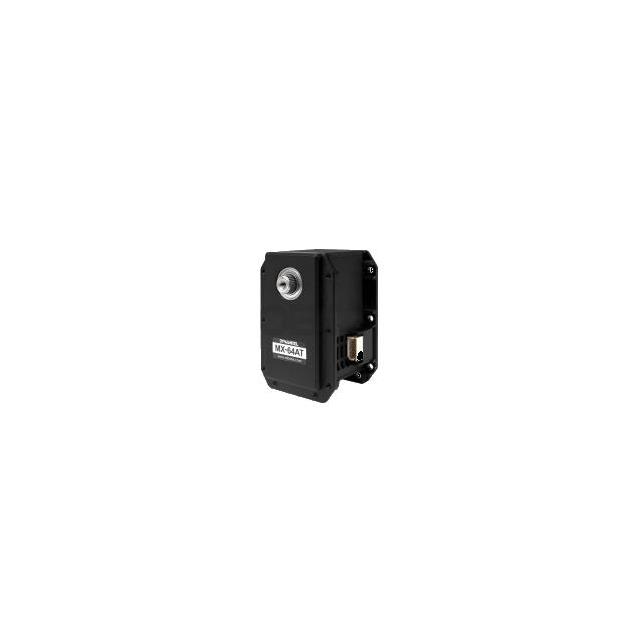

MX-64AT DYNAMIXEL SERVO
| Part | Voltage - Rated | Features | RPM | Termination Style | Motor Type | Torque - Max Momentary (oz-in / mNm) | Torque - Max Momentary (oz-in / mNm) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Encoder Type | Operating Temperature [Max] | Operating Temperature [Min] | Function | Weight | Weight | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ROBOTIS | 12 VDC | Integrated Controller | 63 RPM | Connector | Brushed | 849.8 oz-in | 6000 mNm | 61.1 mm | 2.405 in | 40.2 mm | 1.582 " | Absolute | 80 °C | -5 °C | Servomotor | 165 g | 0.364 lb | DC Motor |
