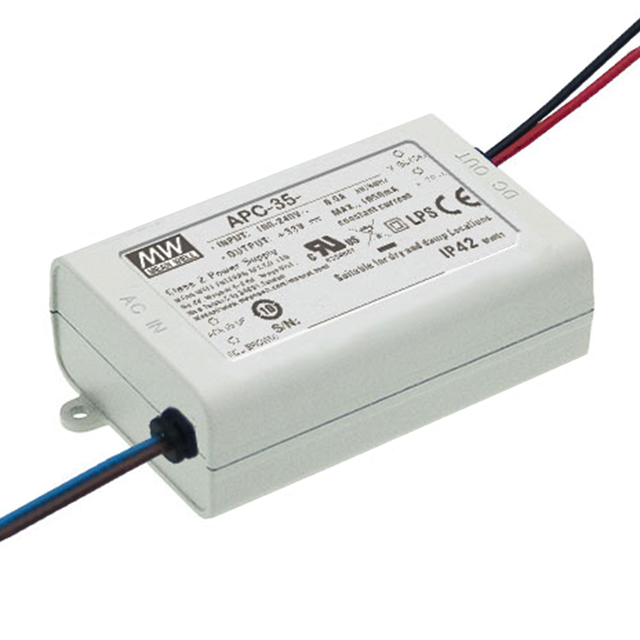

APC-35 Series

Catalog

LED DRVR CC AC/DC 11-33V 1.05A

Part	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Ratings	Number of Outputs	Features	Approval Agency	Power (Watts)	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]
MEAN WELL USA Inc. APC-35-1050	Chassis Mount	264 VAC	3000 V	IP42	1	OVP SCP	CE cURus	35 W	90 VAC	1.05 A	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	Constant Current	84 %	-30 ░C	70 °C	AC DC Converter	Wire Leads
MEAN WELL USA Inc. APC-35-500	Chassis Mount	264 VAC	3000 V	IP42	1	OVP SCP	CE	35 W	90 VAC	500 mA	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	Constant Current	84 %	-30 ░C	70 °C	AC DC Converter	Wire Leads	25 V	70 V
MEAN WELL USA Inc. APC-35-700	Chassis Mount	264 VAC	3000 V	IP42	1	OVP SCP	CE UR	35 W	90 VAC	700 mA	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm	Constant Current	84 %	-30 ░C	70 °C	AC DC Converter	Wire Leads	15 V	50 V
