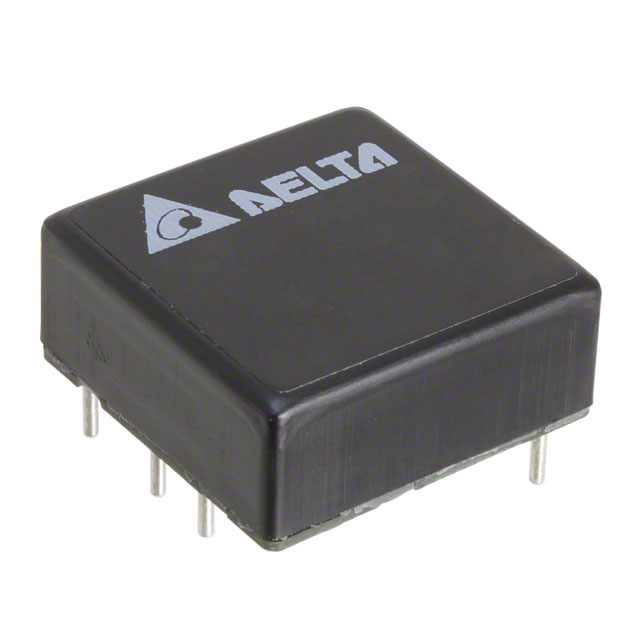

S24SE Series

Catalog

DC DC CONVERTER 5V 10W

Part	Mounting Type	Voltage - Input (Min) [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Output 1	Type	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Applications	Voltage - Isolation	Voltage - Input (Max) [Max]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs
Delta Electronics S24SE05002PDFH	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active High Enable	5 V	Isolated Module	2 A	10 W	87 %	ITE (Commercial) Railway	1.6 kV	36 V	OCP OTP OVP Remote On/Off UVLO
Delta Electronics S24SE3R307PDFA	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active High Enable	3.3 V	Isolated Module	7.5 A	30 Watts	88 %	ITE (Commercial)	1.6 kV	36 V	Remote On/Off UVLO	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	1
Delta Electronics S24SE120R8PDFH	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active High Enable	12 V	Isolated Module	830 mA	10 W	86 %	ITE (Commercial) Railway	1.6 kV	36 V	OCP OTP OVP Remote On/Off UVLO
Delta Electronics S24SE15002PDFH	Through Hole	9 V	6-DIP Module	85 °C	-40 °C	Active High Enable	15 V	Isolated Module	2 A	30 Watts	88 %	ITE (Commercial) Railway	1.6 kV	36 V	OCP OTP OVP Remote On/Off UVLO
Delta Electronics S24SE12001PDFA	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active High Enable	12 V	Isolated Module	1.25 A	15 W	87.5 %	ITE (Commercial)	1.6 kV	36 V	Remote On/Off UVLO	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	1

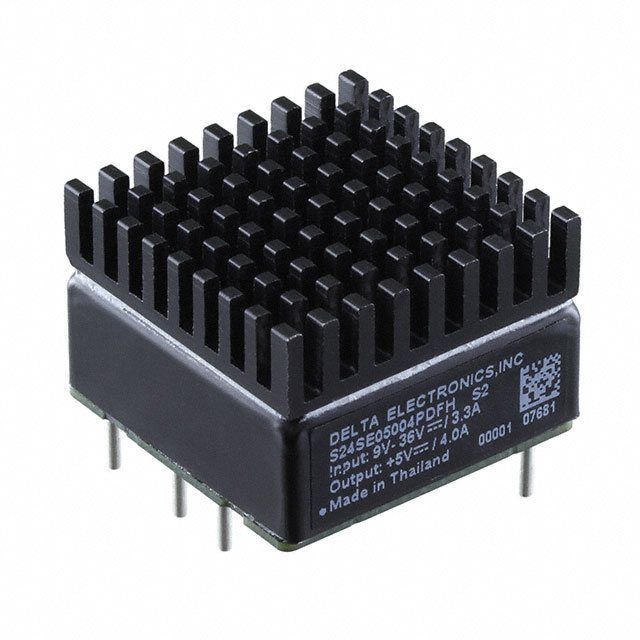

Delta Electronics S24SE05004PDFH	Through Hole	9 V	6-DIP Module	85 °C	-40 °C	Active High Enable	5 V	Isolated Module	4 A	20 W	88 %	ITE (Commercial)	1.6 kV	36 V	OCP OTP OVP Remote On/Off							1
Delta Electronics S24SE12003NDFA	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active Low Enable	12 V	Isolated Module	2.5 A	30 Watts	88 %	ITE (Commercial)	1.6 kV	36 V	Remote On/Off UVLO	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	1
Delta Electronics S24SE05003PDFA	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active High Enable	5 V	Isolated Module	3 A	15 W	89 %	ITE (Commercial)	1.6 kV	36 V	Remote On/Off UVLO	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	1
Delta Electronics S24SE05002NDFA	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active Low Enable	5 V	Isolated Module	2 A	10 W	87 %	ITE (Commercial)	1.6 kV	36 V	Remote On/Off UVLO	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	1
Delta Electronics S24SE12002PDFA	Through Hole	9 V	6-DIP Module	85 °C	-40 C	Active High Enable	12 V	Isolated Module	1.67 A	20 W	88 %	ITE (Commercial)	1.6 kV	36 V	Remote On/Off UVLO	1 "	1 in	25.4 mm	10.2 mm	0.4 "	25.4 mm	1
