RA1066A Series

Manufacturer: E-Switch

Catalog

SWITCH ROCKER SPST 10A 125V

Part	Electrical Life	Mechanical Life	Switch Function	Actuator Type	Color - Actuator/Cap	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Termination Style	Approval Agency

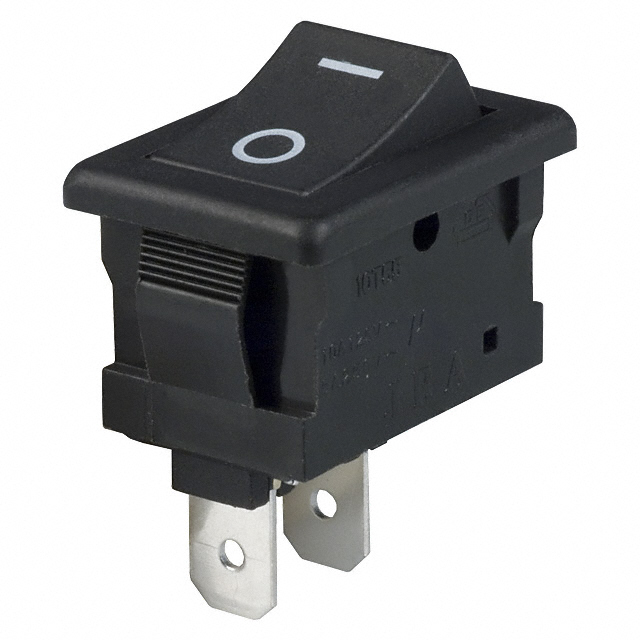

E-Switch RA1066AFH	10000 Cycles	25000 Steps	On-Off	Concave (Curved)	Black	10 A	125 V	Panel Mount Snap-In	O I	19.2 mm	13 mm	SPST	Quick Connect	CSA DEMKO FIMKO NEMKO SEMKO UL VDE
E-Switch RA1066ASK	10000 Cycles	25000 Steps	On-Off	Concave (Curved)	Black	10 A	125 V	Panel Mount Snap-In	O -	19.2 mm	13 mm	SPST	Solder Lug	CSA DEMKO FIMKO NEMKO SEMKO UL VDE

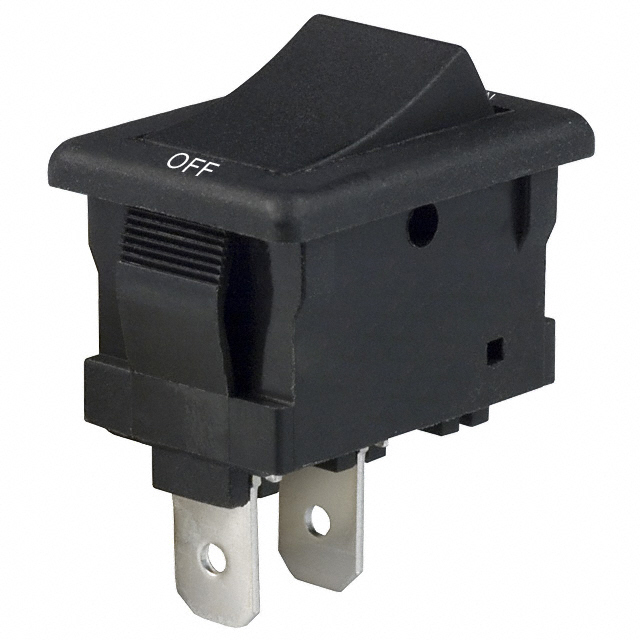

E-Switch RA1066AFC	10000 Cycles	25000 Steps	On-Off	Concave (Curved)	Black	10 A	125 V	Panel Mount Snap-In	ON OFF	19.2 mm	13 mm	SPST	Quick Connect	CSA DEMKO FIMKO NEMKO SEMKO UL VDE
E-Switch RA1066AFX	10000 Cycles	25000 Steps	On-Off	Concave (Curved)	Black	10 A	125 V	Panel Mount Snap-In	No Marking	19.2 mm	13 mm	SPST	Quick Connect	CSA DEMKO FIMKO NEMKO SEMKO UL VDE
E-Switch RA1066AFF	10000 Cycles	25000 Steps	On-Off	Concave (Curved)	Black	10 A	125 V	Panel Mount Snap-In	ON OFF	19.2 mm	13 mm	SPST	Quick Connect	CSA DEMKO FIMKO NEMKO SEMKO UL VDE
