LYL296 Series

Catalog

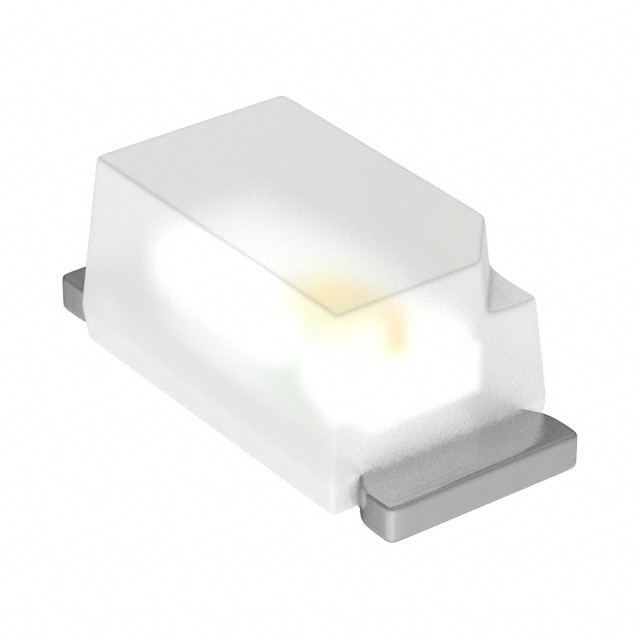

LED YELLOW DIFFUSED 0603 SMD

Part	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Package / Case	Package / Case	Height (Max) [z]	Mounting Type	Lens Style	Lens Transparency	Lens Color	Configuration	Wavelength - Dominant	Viewing Angle	Color	Lens Size [x]	Lens Size [y]	Current - Test
ams-OSRAM USA INC. LY L296-P1R2-26-0-20-R18-Z	1.7 mm	0.8 mm	112.5 mcd	2 V	1608 Metric	0603	0.65 mm	Surface Mount	Rectangle with Flat Top	Diffused	White	Standard	588 nm	160 °	Yellow	1.3 mm	0.8 mm	20 mA
ams-OSRAM USA INC. LY L296-Q2R2-26-Z	1.7 mm	0.8 mm	135 mcd	2 V	1608 Metric	0603	0.65 mm	Surface Mount	Rectangle with Flat Top	Diffused	White	Standard	588 nm	160 °	Yellow	1.3 mm	0.8 mm	20 mA
ams-OSRAM USA INC. LY L296-P1R2-26-Z	1.7 mm	0.8 mm	112.5 mcd	2 V	1608 Metric	0603	0.65 mm	Surface Mount	Rectangle with Flat Top	Diffused	White	Standard	588 nm	160 °	Yellow	1.3 mm	0.8 mm	20 mA
ams-OSRAM USA INC. LY L296-P2R1-26-Z	1.7 mm	0.8 mm	98 mcd	2 V	1608 Metric	0603	0.65 mm	Surface Mount	Rectangle with Flat Top	Diffused	White	Standard	588 nm	160 °	Yellow	1.3 mm	0.8 mm	20 mA
