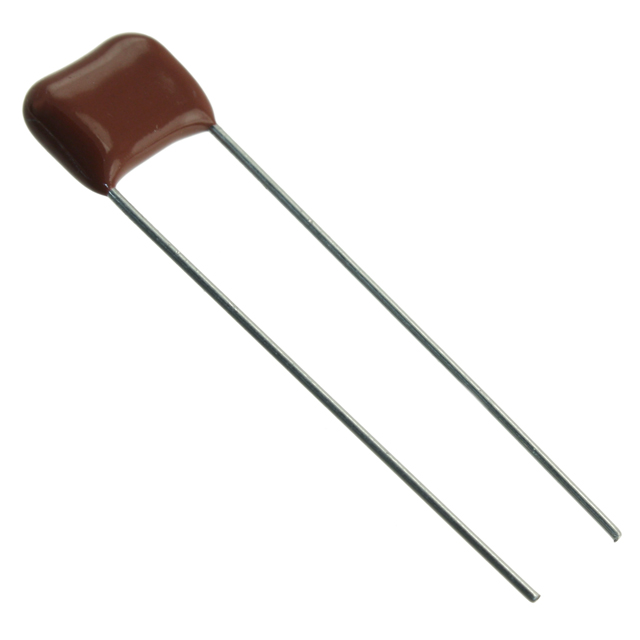

ECQ-E2123 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.012UF 5% 250VDC RAD

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage Rating - DC	Package / Case	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Dielectric Material	Lead Spacing	Lead Spacing	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECQ-E2123JF9	-40 °C	105 ░C	PC Pins	5 %	0.406 "	10.3 mm	4.4 mm	0.173 "	250 V	Radial	General Purpose	0.492 in	12.5 mm	Through Hole	Polyester Metallized	5 mm	0.197 in	0.012 µF
Panasonic Industrial Automation Sales ECQ-E2123JF3	-40 °C	105 ░C	PC Pins	5 %	0.406 "	10.3 mm	4.4 mm	0.173 "	250 V	Radial	General Purpose	0.492 in	12.5 mm	Through Hole	Polyester Metallized	5 mm	0.197 in	0.012 µF
Panasonic Industrial Automation Sales ECQ-E2123JB	-40 °C	105 ░C	PC Pins	5 %	0.311 "	7.9 mm	4.2 mm	0.165 "	250 V	Radial	General Purpose			Through Hole	Polyester Metallized	5 mm	0.197 in	0.012 µF	0.319 "	8.1 mm
Panasonic Industrial Automation Sales ECQ-E2123KB3	-40 °C	105 ░C	PC Pins	10 %	0.311 "	7.9 mm	4.2 mm	0.165 "	250 V	Radial	General Purpose			Through Hole	Polyester Metallized	5 mm	0.197 in	0.012 µF	0.476 "	12.1 mm
Panasonic Industrial Automation Sales ECQ-E2123KF3	-40 °C	105 ░C	PC Pins	10 %	0.406 "	10.3 mm	4.4 mm	0.173 "	250 V	Radial	General Purpose	0.492 in	12.5 mm	Through Hole	Polyester Metallized	5 mm	0.197 in	0.012 µF
Panasonic Industrial Automation Sales ECQ-E2123KB	-40 °C	105 ░C	PC Pins	10 %	0.311 "	7.9 mm	4.2 mm	0.165 "	250 V	Radial	General Purpose			Through Hole	Polyester Metallized	5 mm	0.197 in	0.012 µF	0.319 "	8.1 mm
Panasonic Industrial Automation Sales ECQ-E2123JFB	-40 °C	105 ░C	PC Pins	5 %	0.406 "	10.3 mm	4.4 mm	0.173 "	250 V	Radial	General Purpose	0.492 in	12.5 mm	Through Hole	Polyester Metallized	7.5 mm	0.295 in	0.012 µF
Panasonic Industrial Automation Sales ECQ-E2123KS	-40 °C	85 °C	PC Pins	10 %	0.492 in	12.5 mm	4.5 mm	0.177 "	250 V	Radial	General Purpose	0.354 in	9 mm	Through Hole	Polyester Metallized	10 mm	0.394 in	0.012 µF
Panasonic Industrial Automation Sales ECQ-E2123KF	-40 °C	105 ░C	PC Pins	10 %	0.406 "	10.3 mm	4.4 mm	0.173 "	250 V	Radial	General Purpose			Through Hole	Polyester Metallized	7.5 mm	0.295 in	0.012 µF	0.335 in	8.5 mm

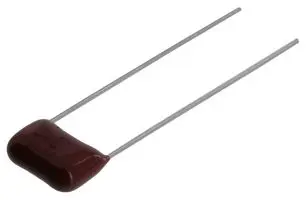

Panasonic Industrial Automation Sales ECQ-E2123JF	-40 °C	105 ░C	PC Pins	5 %	0.406 "	10.3 mm	4.4 mm	0.173 "	250 V	Radial	General Purpose			Through Hole	Polyester Metallized	7.5 mm	0.295 in	0.012 µF	0.335 in	8.5 mm
