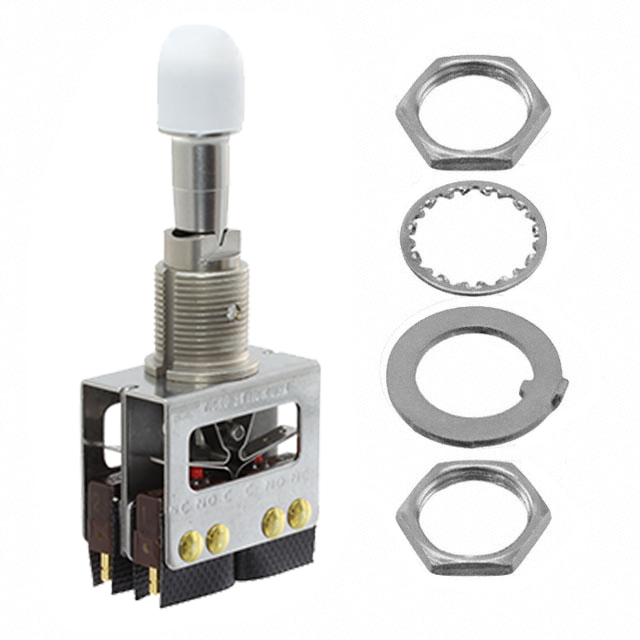

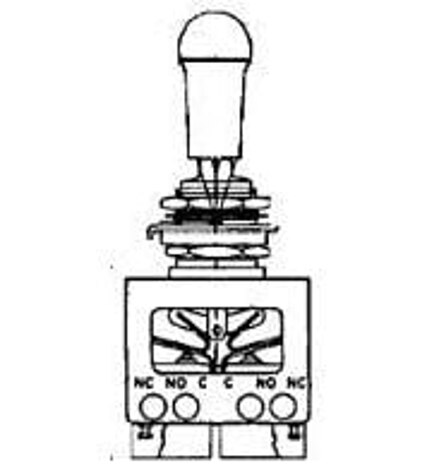

64AT3 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH TOGGLE 4PDT 1A 125V
| Part | Voltage Rating - AC | Bushing Thread | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Circuit | Illumination | Switch Function | Termination Style | Mounting Type | Actuator Type | Actuator Length [x] | Electrical Life | Voltage Rating - DC | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 125 V | 15/32-32 | 1 A | 12.4 mm | 4PDT | Non-Illuminated | On-Off-On | Solder Turret | Panel Mount | Locking Lever | 29.97 mm | |||||
 Honeywell Sensing and Productivity Solutions | 115 V | 15/32-32 | 7 A | 12.4 mm | 4PDT | Non-Illuminated | On-Off-Mom | Quick Connect | Panel Mount | Locking Lever | 30 mm | 6000 Cycles | 28 V | 0.058 in | -55 C | 85 °C |
Honeywell Sensing and Productivity Solutions | 15/32-32 | 1 A | 12.4 mm | 4PDT | Non-Illuminated | On-On | Quick Connect | Panel Mount | Standard Round | 17.27 mm | 30 V | 0.058 in | ||||
Honeywell Sensing and Productivity Solutions | 115 V | 15/32-32 | 7 A | 12.4 mm | 4PDT | Non-Illuminated | On-On | Quick Connect | Panel Mount | Locking Lever | 30 mm | 6000 Cycles | 28 V | 0.058 in | -55 C | 85 °C |
 Honeywell Sensing and Productivity Solutions | 15/32-32 | 1 A | 12.4 mm | 4PDT | Non-Illuminated | Mom-Off-Mom | Quick Connect | Panel Mount | Locking Lever | 30 mm | 6000 Cycles | 30 V | 0.058 in | -55 C | 85 °C | |
Honeywell Sensing and Productivity Solutions | ||||||||||||||||
Honeywell Sensing and Productivity Solutions | 15/32-32 | 1 A | 12.4 mm | 4PDT | Non-Illuminated | Mom-Off-Mom | Quick Connect | Panel Mount | Standard Round | 17.27 mm | 30 V | 0.058 in | ||||
Honeywell Sensing and Productivity Solutions | 115 V | 15/32-32 | 7 A | 12.4 mm | 4PDT | Non-Illuminated | On-Off-Mom | Quick Connect | Panel Mount | Standard Round | 17.27 mm | 6000 Cycles | 28 V | 0.058 in | -55 C | 85 °C |
 Honeywell Sensing and Productivity Solutions | 115 V | 15/32-32 | 7 A | 12.4 mm | 6PDT | Non-Illuminated | On-Off-Mom | Solder Turret | Panel Mount | Locking Lever | 26.67 mm | 28 V | ||||
Honeywell Sensing and Productivity Solutions | 15/32-32 | 1 A | 12.4 mm | 4PDT | Non-Illuminated | Mom-Off-Mom | Quick Connect | Panel Mount | Locking Lever | 30 mm | 30 V | 0.058 in |
