1840419 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

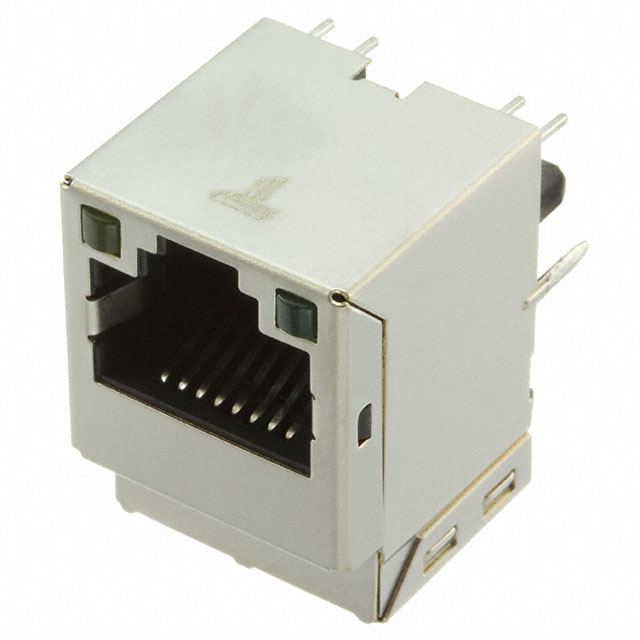

CONN JACK 1PORT PCB
| Part | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Housing Material | Mounting Type | Applications | Shielding | Number of Ports | Connector Type | Termination | LED Color | Contact Finish | Contact Material | Number of Rows | Tab Direction | Orientation | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 50 µin | 1.27 µm | Brass | Thermoplastic | Through Hole | 10/100 Base-T AutoMDIX | Shielded | 1 | RJ45 | Solder | Green - Yellow | Gold | Phosphor Bronze | 1 | User Selectable | Vertical | 0.65 in | 16.51 mm | 70 °C | 0 °C | Board Guide |
 Bel Fuse Inc. | Through Hole | 10/100 Base-T AutoMDIX | Shielded | 1 | RJ45 | Solder | Yellow - Green | Gold | Phosphor Bronze | 1 | User Selectable | Vertical | 0.65 in | 16.51 mm | 70 °C | 0 °C | Board Guide | ||||
Bel Fuse Inc. | 50 µin | 1.27 µm | Brass | Thermoplastic | Through Hole | 10/100 Base-T AutoMDIX | Shielded | 1 | RJ45 | Solder | Yellow - Green | Gold | Phosphor Bronze | 1 | User Selectable | Vertical | 0.65 in | 16.51 mm | 70 °C | 0 °C | Board Guide |
