Isolators and Solid State Relays for Enhanced Safety and Efficiency | Toshiba, Photocoupler (photo-IC output), IGBT driver, IOP=+/-1.0 A, 5000 Vrms, SO6L
Isolators and Solid State Relays for Enhanced Safety and Efficiency | Toshiba, Photocoupler (photo-IC output), IGBT driver, IOP=+/-1.0 A, 5000 Vrms, SO6L
Isolators and Solid State Relays for Enhanced Safety and Efficiency | Toshiba, Photocoupler (photo-IC output), IGBT driver, IOP=+/-1.0 A, 5000 Vrms, SO6L
| Part | Approval Agency | Pulse Width Distortion (Max) [Max] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] | Voltage - Output Supply [Min] | Voltage - Output Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Forward (Vf) (Typ) | Technology | Number of Channels [custom] | Mounting Type | Current - Output High, Low [custom] | Current - Output High, Low [custom] | Current - DC Forward (If) (Max) [Max] | Package / Case | Supplier Device Package | Propagation Delay tpLH / tpHL (Max) [Max] | Common Mode Transient Immunity (Min) [Min] | Current - Peak Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

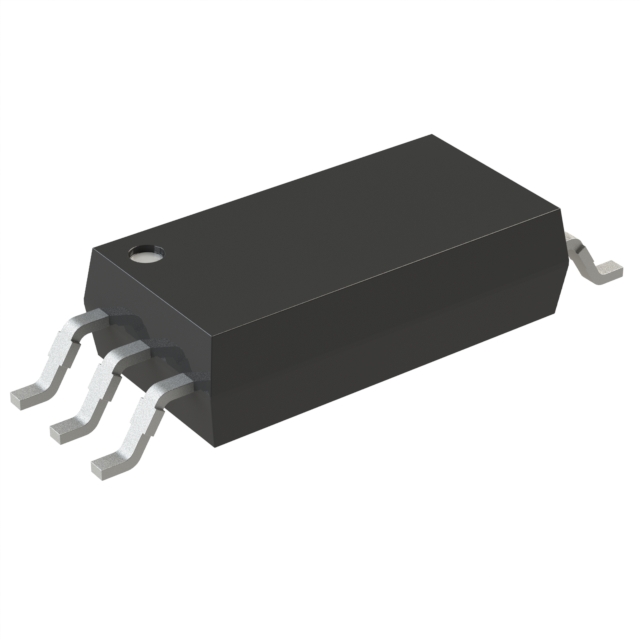

 Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 125 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
 Toshiba Semiconductor and Storage | CQC CSA cUL UL | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 110 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
 Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 110 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
 Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 110 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 125 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 110 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 110 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 125 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 110 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
Toshiba Semiconductor and Storage | CQC CSA cUL UL VDE | 50 ns | 8 ns | 15 ns | 15 V | 30 V | 125 °C | -40 C | 1.55 V | Optical Coupling | 1 | Surface Mount | 1 A | 1 A | 20 mA | 6-SOIC (0.295" 7.50mm Width) | 6-SO | 150 ns | 35 kV/µs | 1 A |
