SLE210 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Termination Style | Actuator Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Voltage Rating - AC | Actuator Marking | Approval Agency | Mounting Type | Panel Cutout Dimensions [y] | Panel Cutout Dimensions | Panel Cutout Dimensions [x] | Circuit | Current Rating (Amps) | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

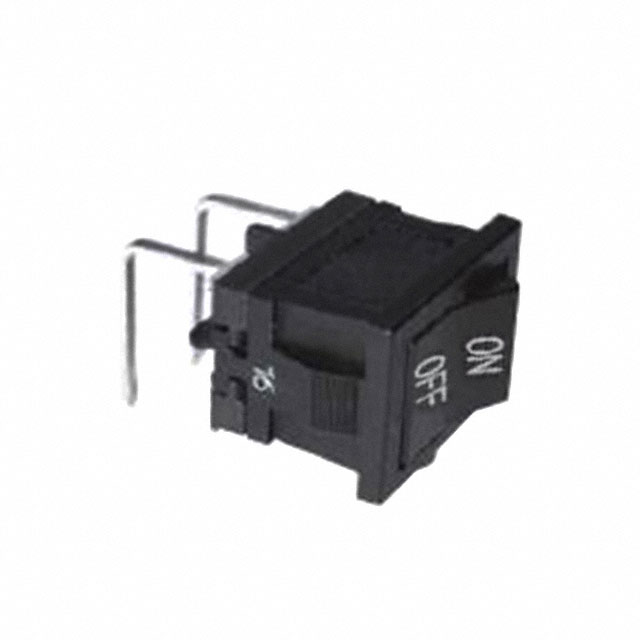

 Nidec Components Corporation | PC Pin | Concave (Curved) | Dust Proof | -25 °C | 85 °C | On-Off | 125 V | ON OFF Vertical | CUS SEMKO | Panel Mount Right Angle Snap-In | 12.9 mm | Rectangular | 19.2 mm | DPST | 10 A | Black |

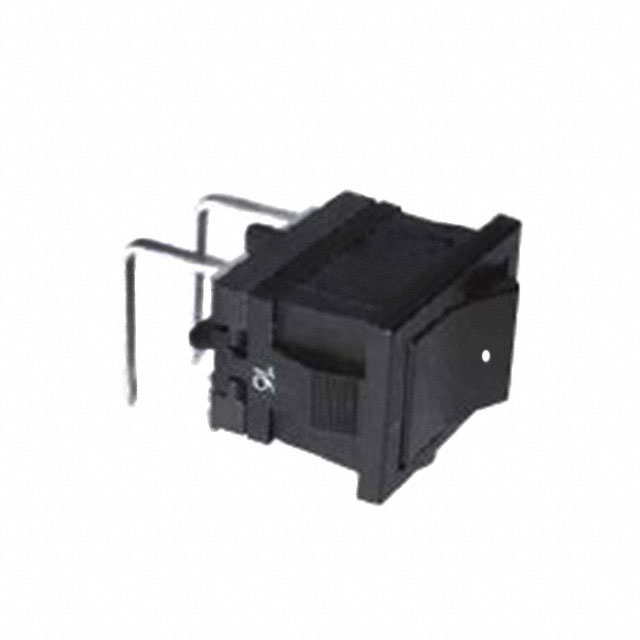

 Nidec Components Corporation | PC Pin | Concave (Curved) | Dust Proof | -25 °C | 85 °C | On-Off | 125 V | Dot | CUS SEMKO | Panel Mount Right Angle Snap-In | 12.9 mm | Rectangular | 19.2 mm | DPST | 10 A | Black |

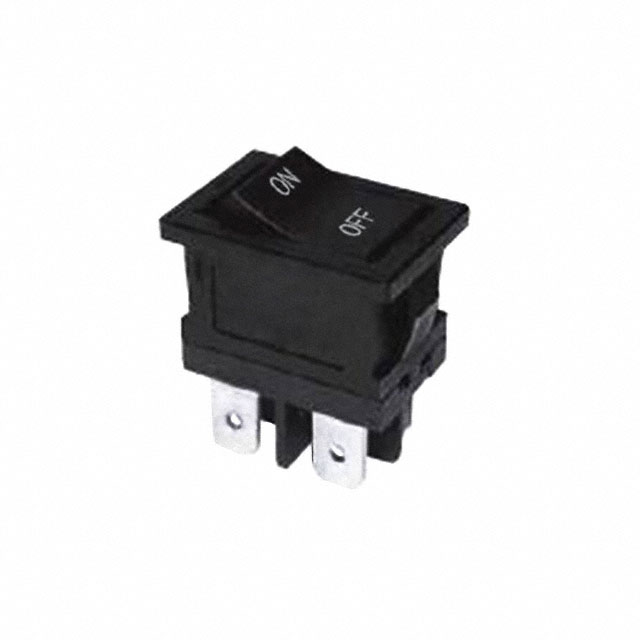

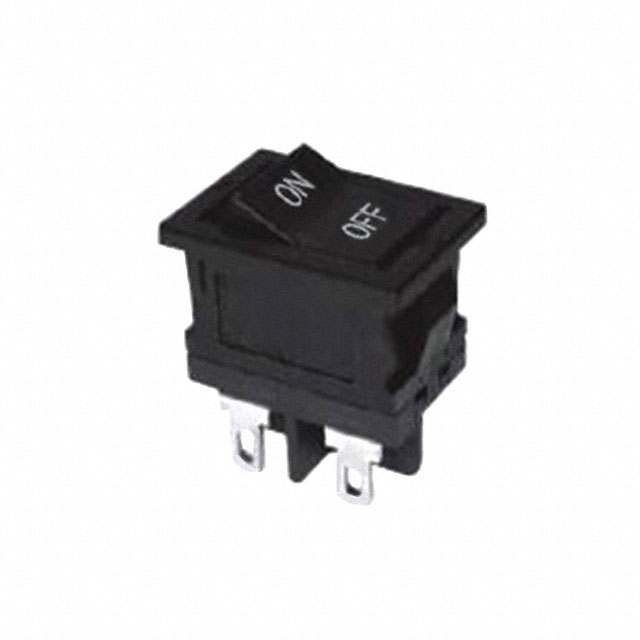

 Nidec Components Corporation | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | Dust Proof | -25 °C | 85 °C | On-Off | 125 V | ON OFF Vertical | CUS SEMKO | Panel Mount Snap-In | 12.9 mm | Rectangular | 19.2 mm | DPST | 10 A | Black |

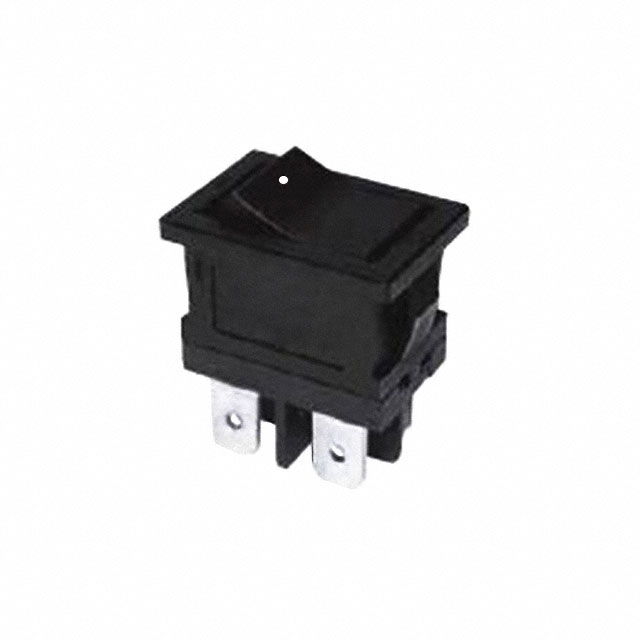

 Nidec Components Corporation | Quick Connect - 0.187" (4.7mm) | Concave (Curved) | Dust Proof | -25 °C | 85 °C | On-Off | 125 V | Dot | CUS SEMKO | Panel Mount Snap-In | 12.9 mm | Rectangular | 19.2 mm | DPST | 10 A | Black |
